Preliminary Procedure
Remove Steering Linkage Outer Tie Rod. Refer to Steering Linkage Outer Tie Rod Replacement |

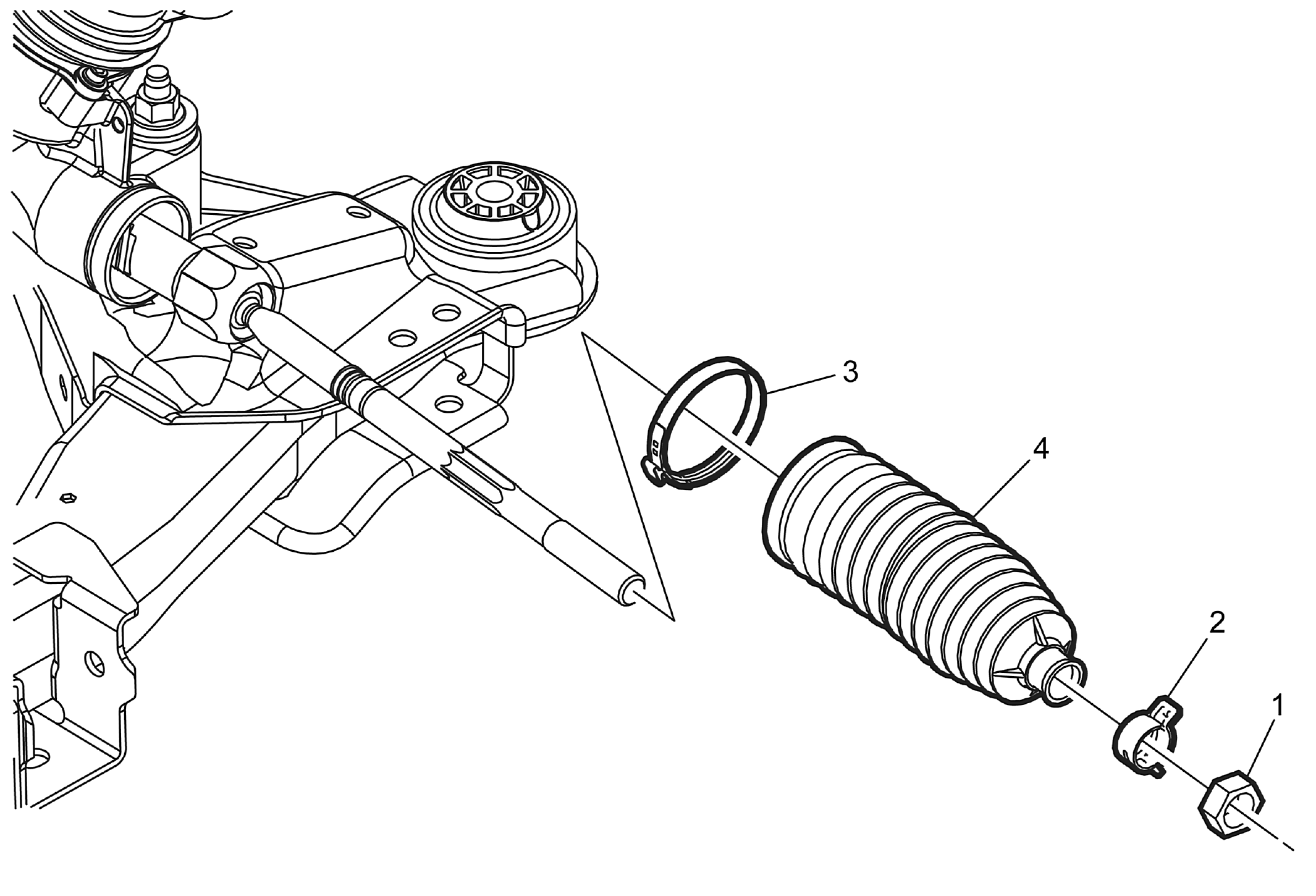

| 1 |
Steering Linkage Inner Tie Rod Nut
Procedure
Place match marks on the steering linkage inner tie rod nut and the steering linkage inner tie rod. |
| 2 |
Steering Gear Boot Outer Clamp |
| 3 |
Steering Gear Boot Inner Clamp Procedure
- Cut the steering gear boot inner clamp.
DISCARD the clamp.
- Use the DT-35910
pliers to install the NEW steering gear boot inner clamp.
Special Tools
DT-35910
Drive Axle Boot Clamp Pliers
Equivalent regional tools: Special Tools |
| 4 |
Steering Gear Boot Procedure
- After removing the steering gear boot, inspect the steering linkage inner tie rod for evidence of corrosion or contamination. If corrosion or contamination is evident, replace the steering gear. Refer to Electric Dual Pinion Rack and Pinion Steering Gear Replacement (FWD, LEA/MH8, NJ1) , or Electric Dual Pinion Rack and Pinion Steering Gear Replacement (FWD, LTG, M7W, NJ1)
- Apply a small amount of Lithium Grease or equivalent to the inside of both ends of the steering gear boot to aid in installation. Refer to Adhesives, Fluids, Lubricants, and Sealers
- Install the steering gear boot and ensure the boot is seated in the assembly groove of the steering gear before installing the steering gear boot clamps.
|
