Regal GS, FWD
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Keyless Entry System And Remote Functions
›
Schematic Wiring Diagrams
›
Remote Function Wiring Schematics
›
Passive Entry Power, Ground, Data Communications
Passive Entry Power, Ground, Data Communications

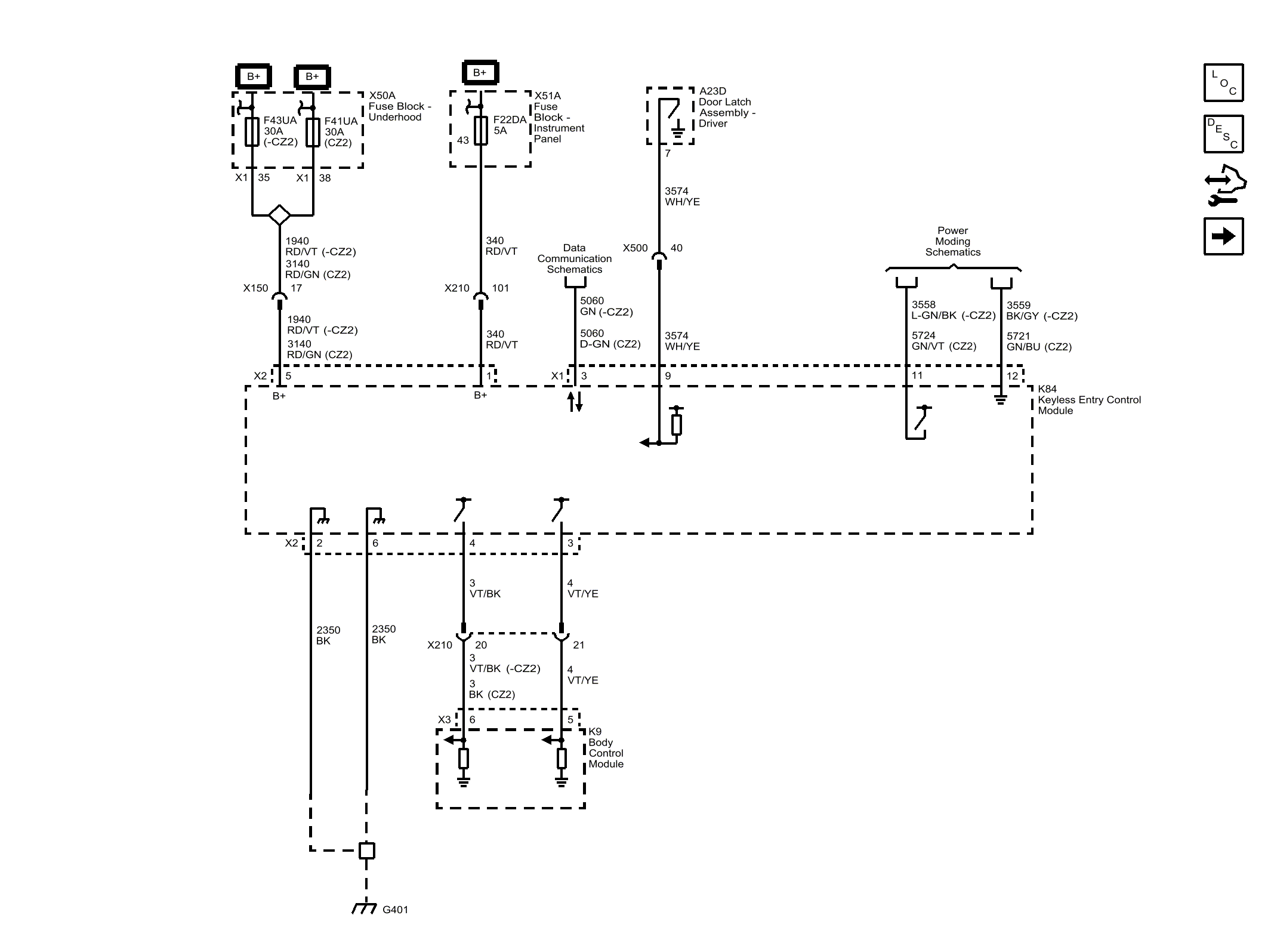

Fig 1: Passive Entry Power, Ground, Data Communications
