Data Communication Wiring Schematics
›
GMLAN Communications Enable (CZ2)
GMLAN Communications Enable (CZ2)

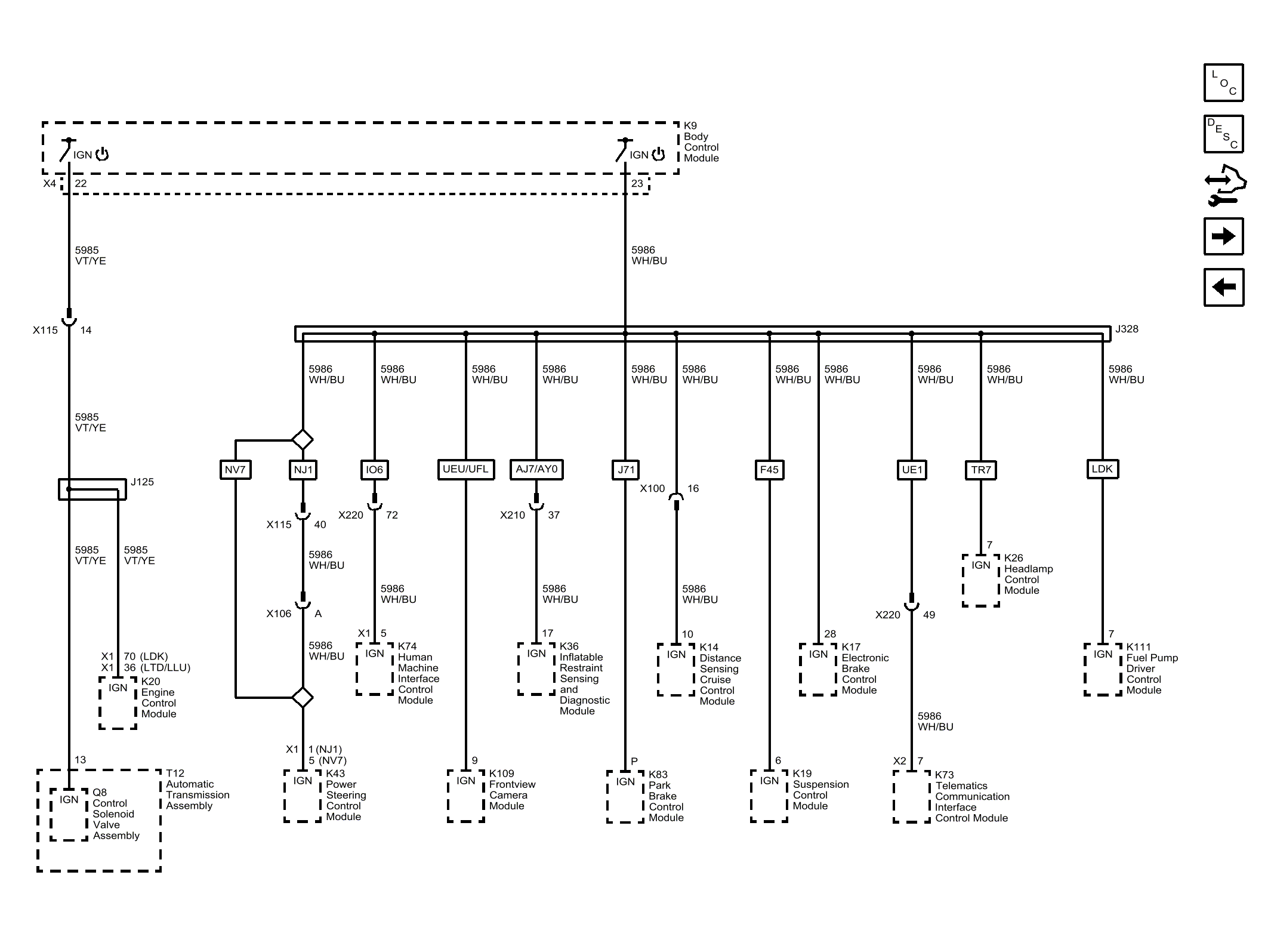

Fig 1: GMLAN Communications Enable (CZ2)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
