Installation Procedure

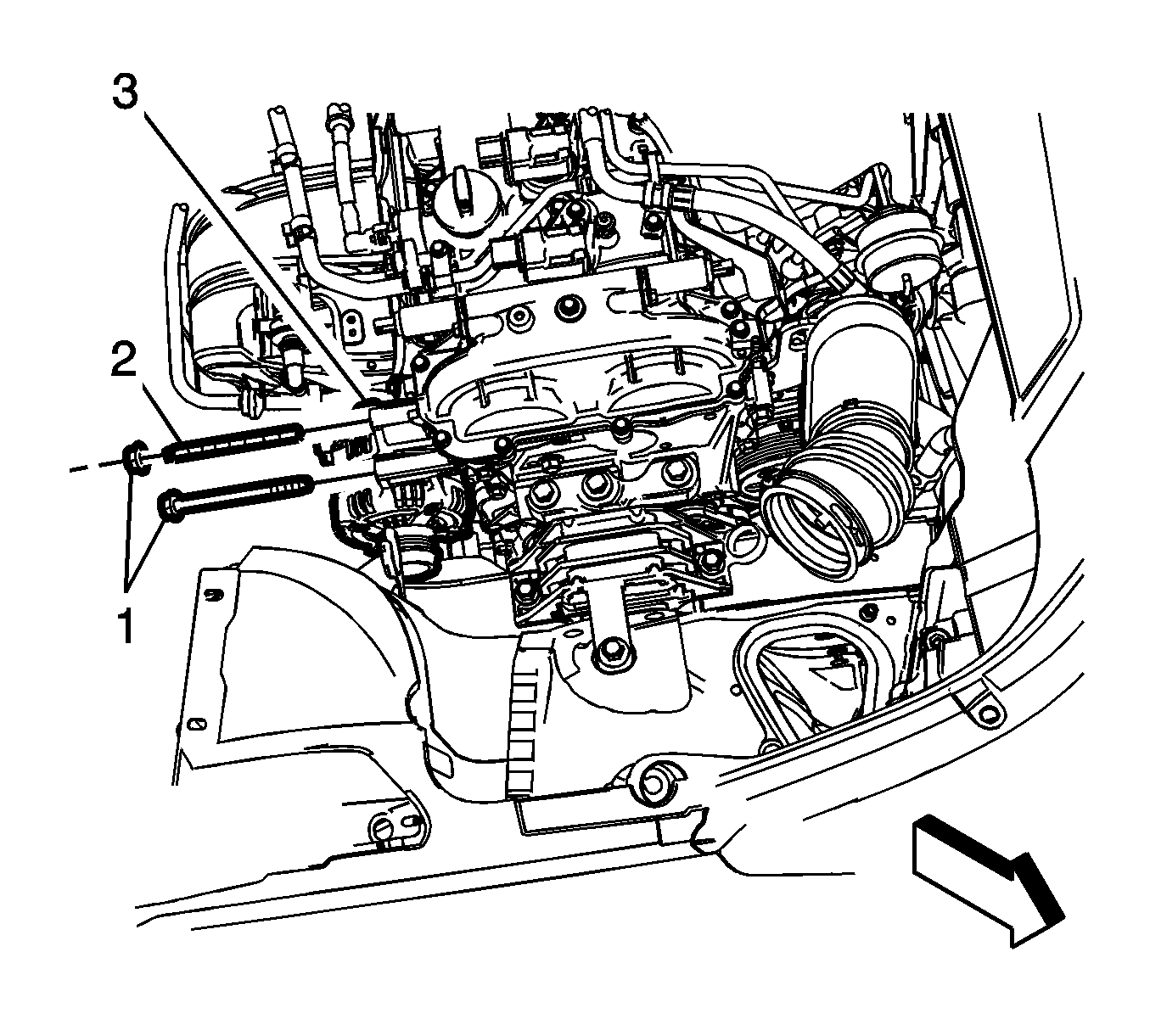

    Fig 1: Generator Mounting Fasteners, Generator Mounting Stud And Generator
    GM2891186Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the generator mounting stud (2) to the cylinder head and tighten to 9 N.m (80 lb in).
  2. Install the generator (3) into position and tighten the fasteners (1) to 22 N.m (16 lb ft).
    3. Fig 2: Lower Generator Mounting Fastener
    GM2814561Courtesy of GENERAL MOTORS COMPANY
  3. Install the generator lower mounting fastener (2) and tighten to 22 N.m (16 lb ft).
  4. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
    5. Fig 3: Protective Boot And Battery Positive Cable Fastener
    GM2814562Courtesy of GENERAL MOTORS COMPANY
  5. Install the battery positive cable (3) to the back of the generator and tighten the fastener (2) to 15 N.m (11 lb ft).
  6. Install the protective boot (1) and connect the engine wiring harness connector (4).
  7. Install the drive belt. Refer to Drive Belt Replacement .
