Rearview Driver Information Camera Replacement

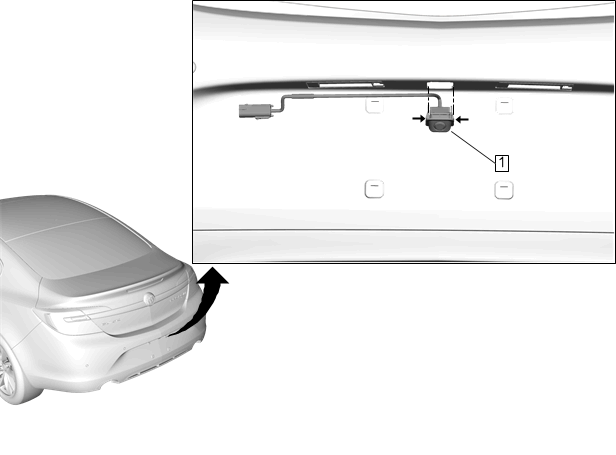

Fig 1: Rearview Driver Information Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement
1	Rearview Driver Information Camera Procedure Disconnect the electrical connector. Using a flat-bladed tool, depress the tabs and pull the rearview camera down from the rear fascia.

Callout

Component Name

Preliminary Procedure
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement

Rearview Driver Information Camera

Procedure

Disconnect the electrical connector.
Using a flat-bladed tool, depress the tabs and pull the rearview camera down from the rear fascia.
