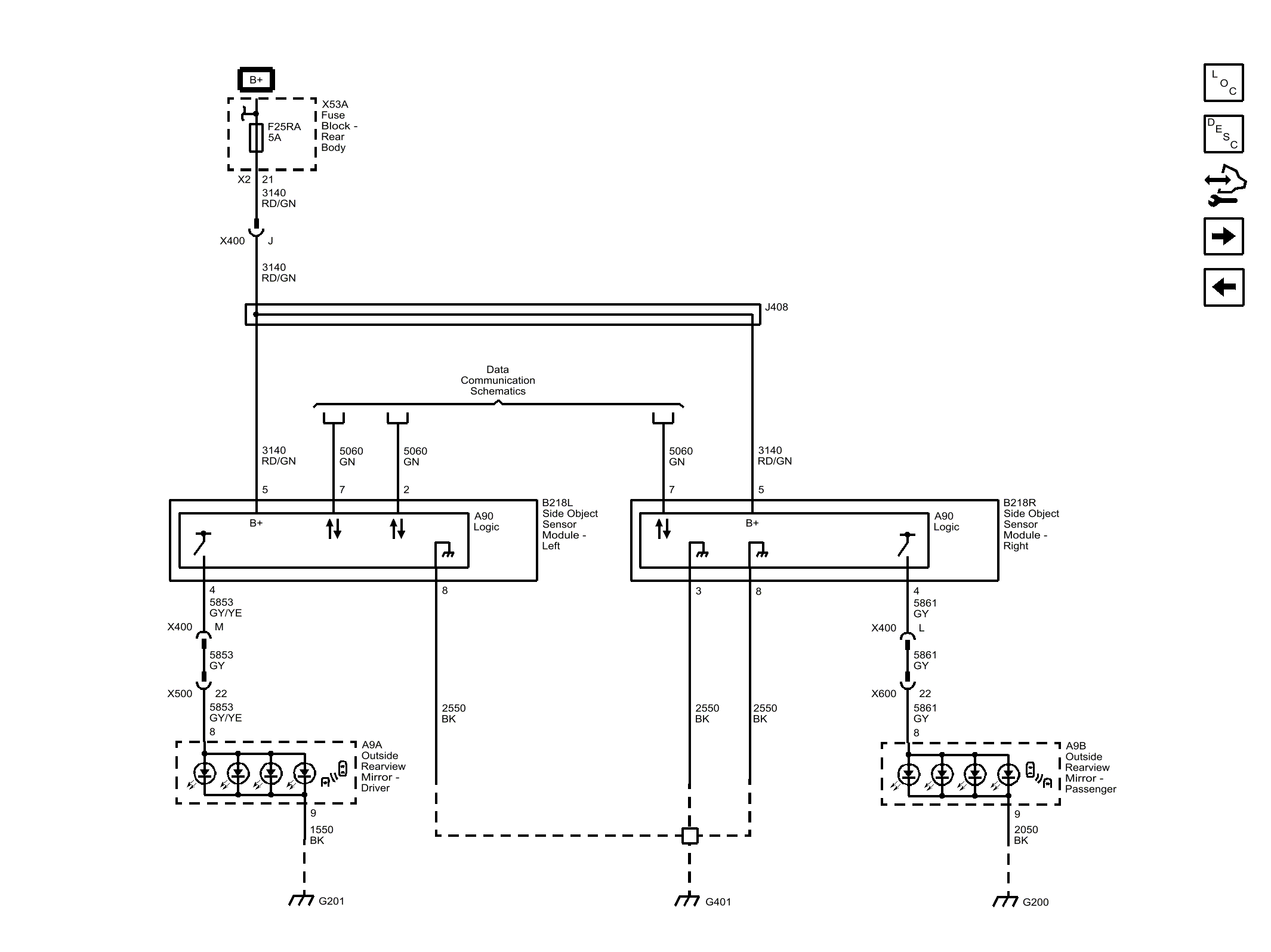

Home › Buick › 2017 › Verano Base, Gas › Repair and Diagnosis › Accessories & Equipment › Drivers Assistance Systems - ADAS › Object Detection System And Pedestrian Protection System › Schematic Wiring Diagrams › Object Detection Wiring Schematics › Side Blind Zone Alert (UFT)
