Navigation Signal Splitter Bracket Replacement

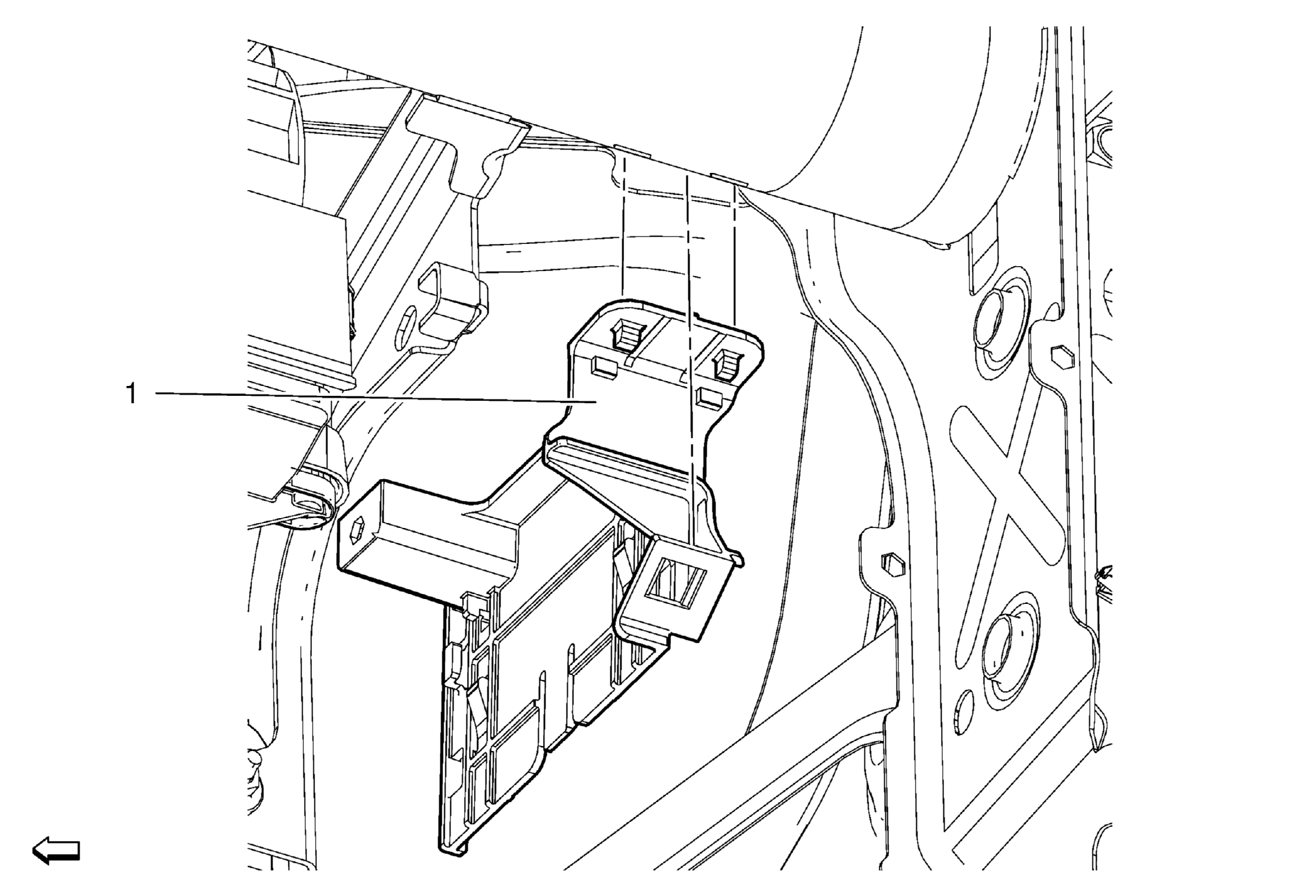

Fig 1: Navigation Signal Splitter Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove navigation signal splitter. Refer to Navigation Signal Splitter Replacement .
1	Navigation Signal Splitter Bracket Procedure  Unclip from instrument panel tie bar.
