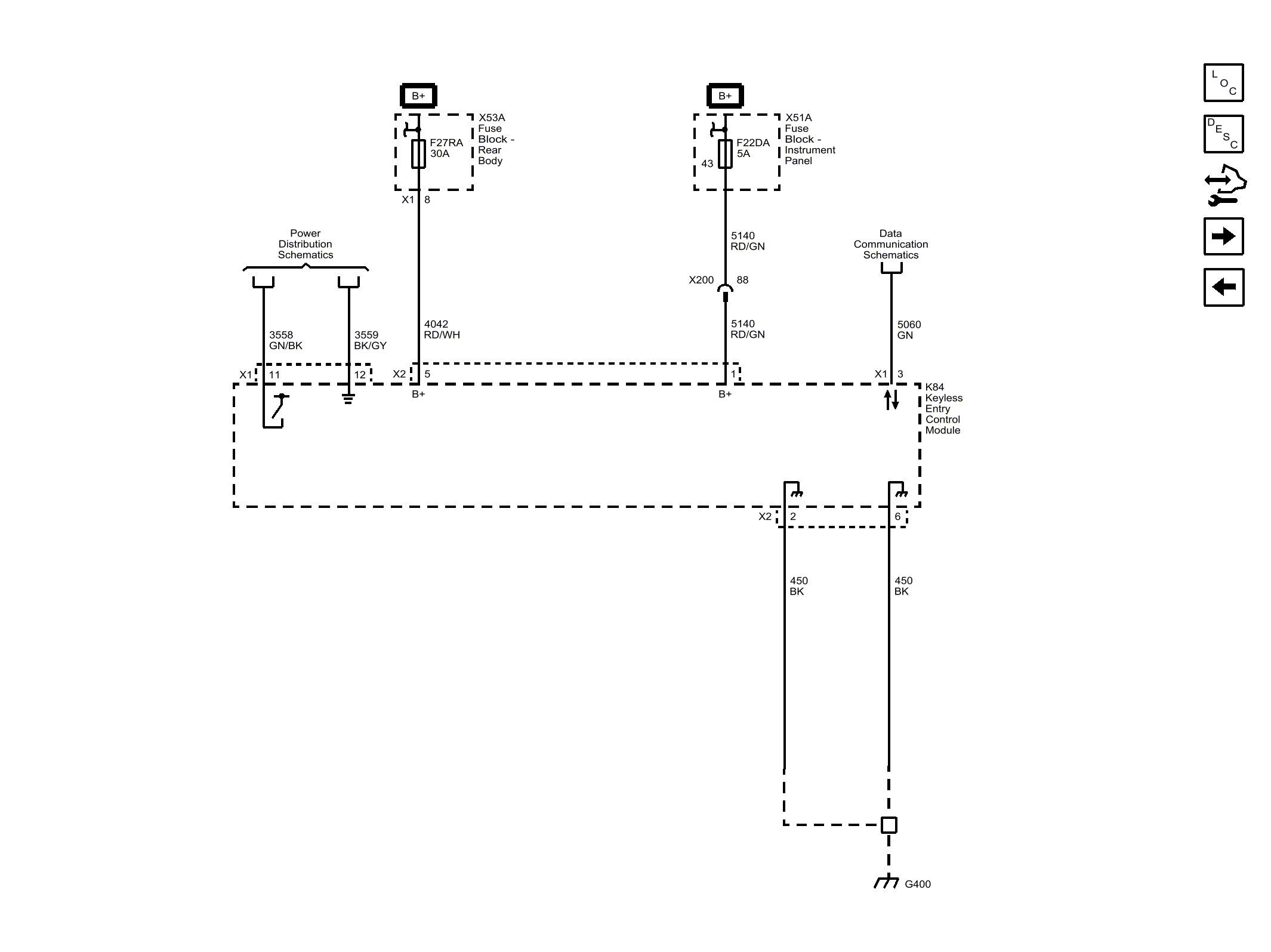

Home › Buick › 2017 › Verano Base, Gas › Repair and Diagnosis › Body & Frame › Door Locks › Keyless Entry System And Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Passive Entry (ATH with BTM)
