Installation Procedure
- Install the radiator to the vehicle.

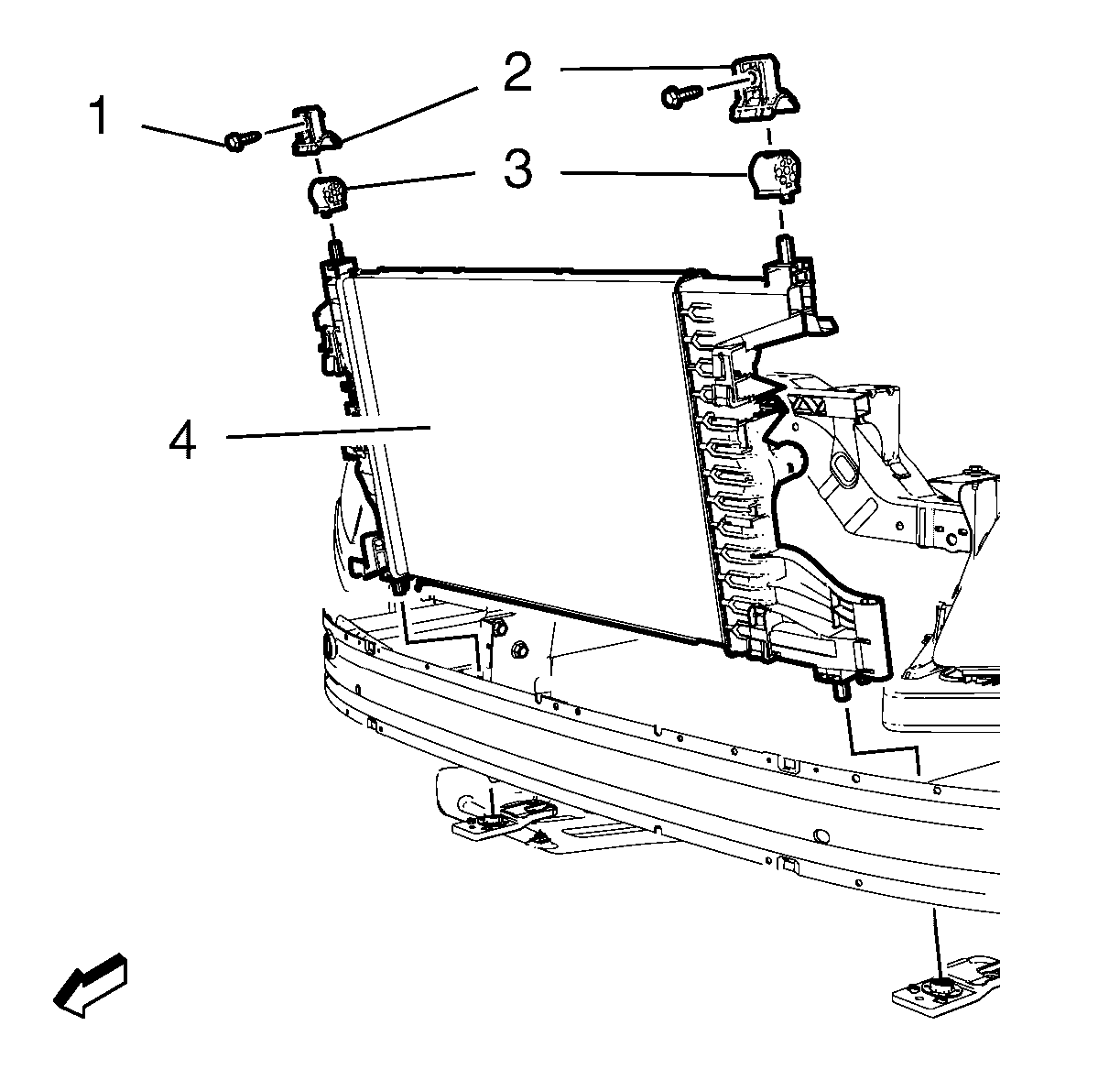

- Install the 2 radiator upper insulators (3) to the radiator.
- Install the 2 radiator upper brackets (2) and the 2 radiator upper bracket bolts (1) to the radiator (4) and tighten to 22 N.m (16 lb ft).
- Install the engine coolant fan shroud in top direction from the radiator.

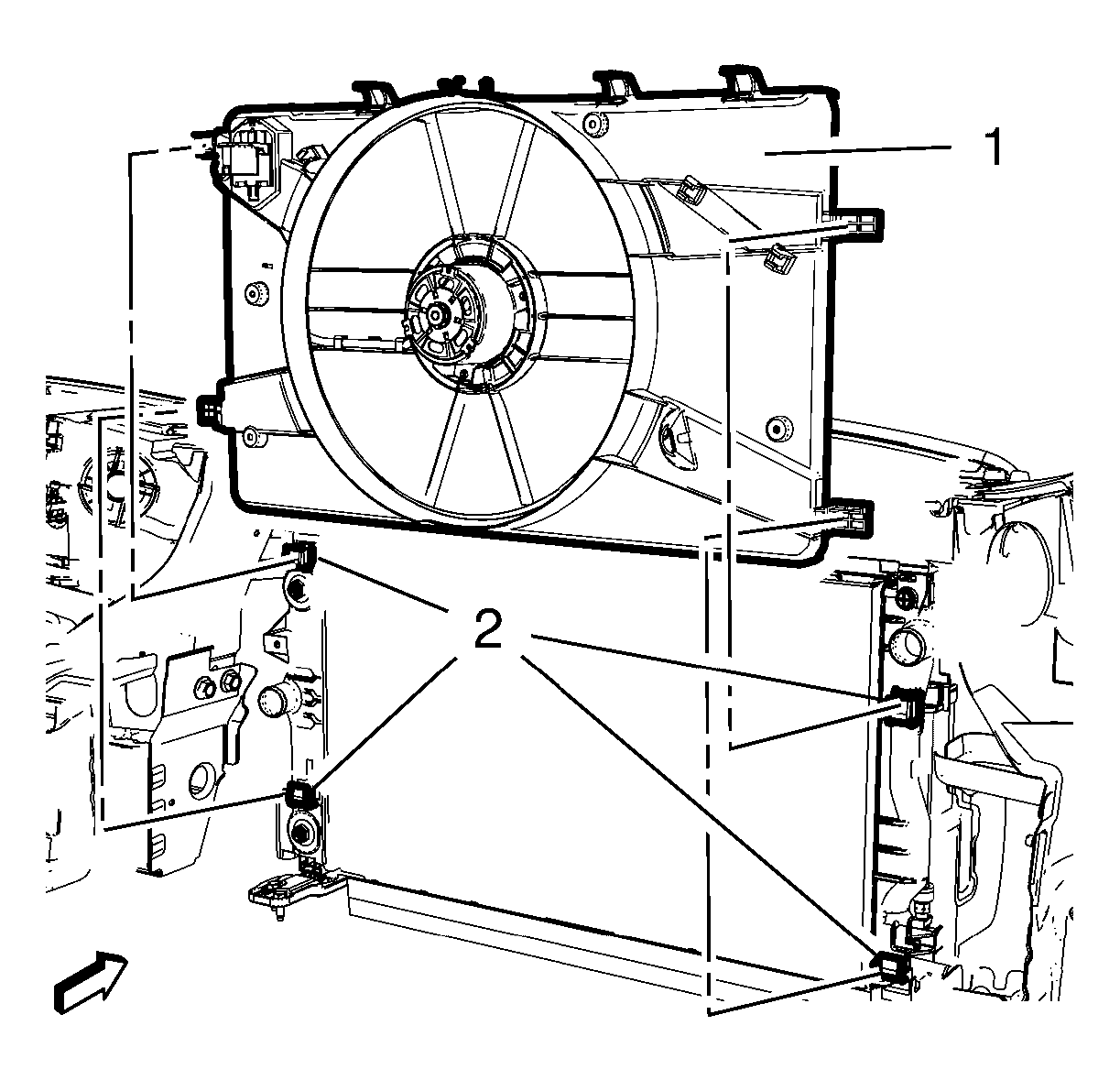

- Clip the engine coolant fan shroud (1) to the 4 mounting points (2).
- Install the transmission oil cooler inlet and outlet pipe to the radiator. Refer to Transmission Fluid Cooler Inlet Pipe Replacement , and Transmission Fluid Cooler Outlet Pipe Replacement .

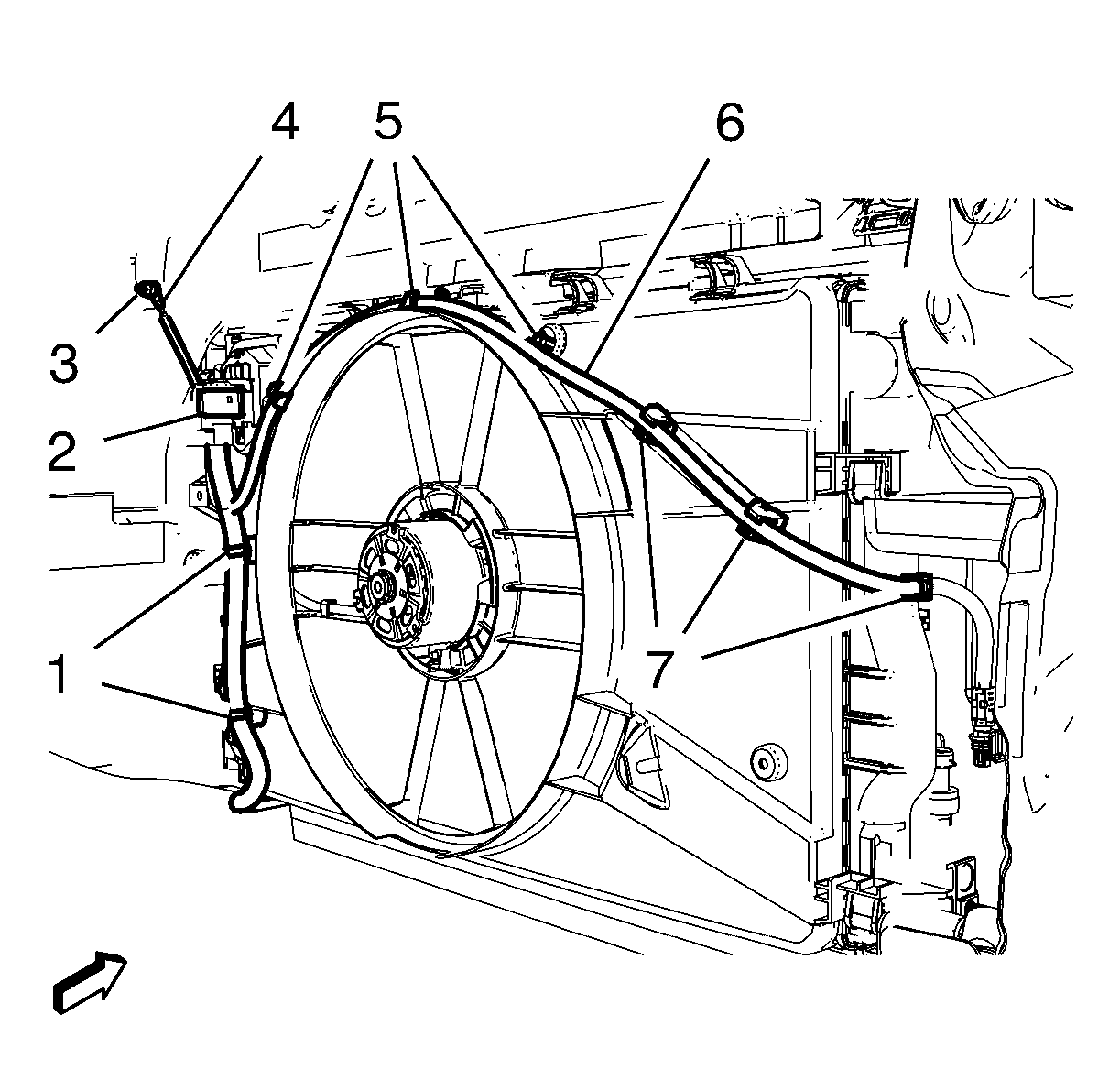

- Position the engine coolant fan wiring harness (6). Clip the engine coolant fan wiring harness to the 7 wiring harness clips (1, 5, 7).
- Connect the engine coolant fan resistor wiring harness plug (2).
- Install the ground cable (4) and the ground cable nut (3) and tighten the nut to 10 N.m (89 lb in).
- Connect the engine coolant temperature sensor wiring harness plug (3).

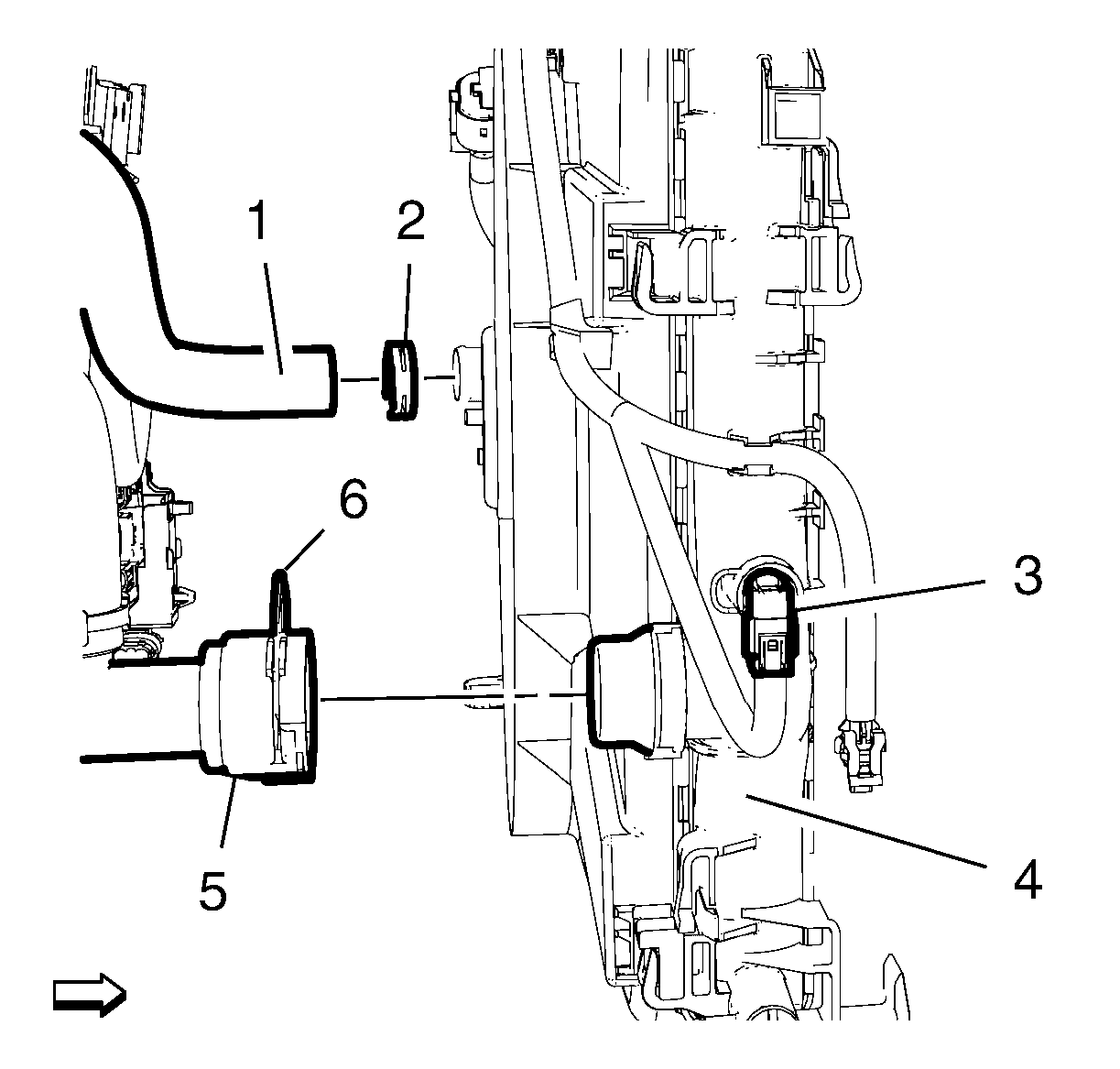

- Install the radiator inlet hose clamp (6) and the radiator outlet hose (5) to the radiator (4).
- Install the radiator inlet hose clamp (2) and the radiator inlet hose (1) to the radiator (4).
- Fill the cooling system. Refer to Cooling System Draining and Filling .
- Install the air conditioning condenser. Refer to Air Conditioning Condenser Replacement .
- Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
- Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
CAUTION:
Refer to Fastener Caution .
