Power, Ground, and Subsystem References (1 of 4)
Power, Ground, and Subsystem References (1 of 4)

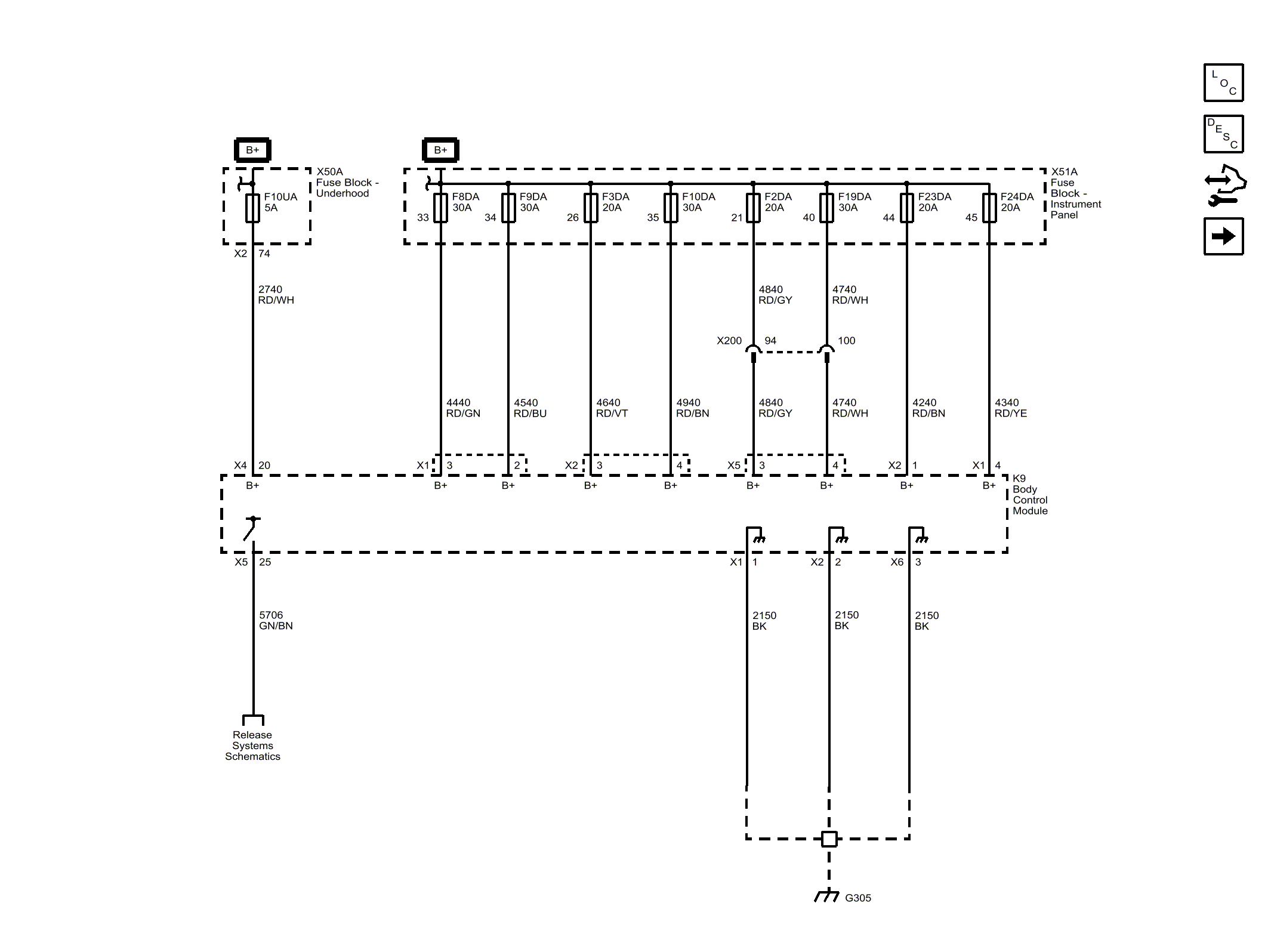

Fig 1: Power, Ground, and Subsystem References (1 of 4)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
