Linear Interconnect Network (LIN)

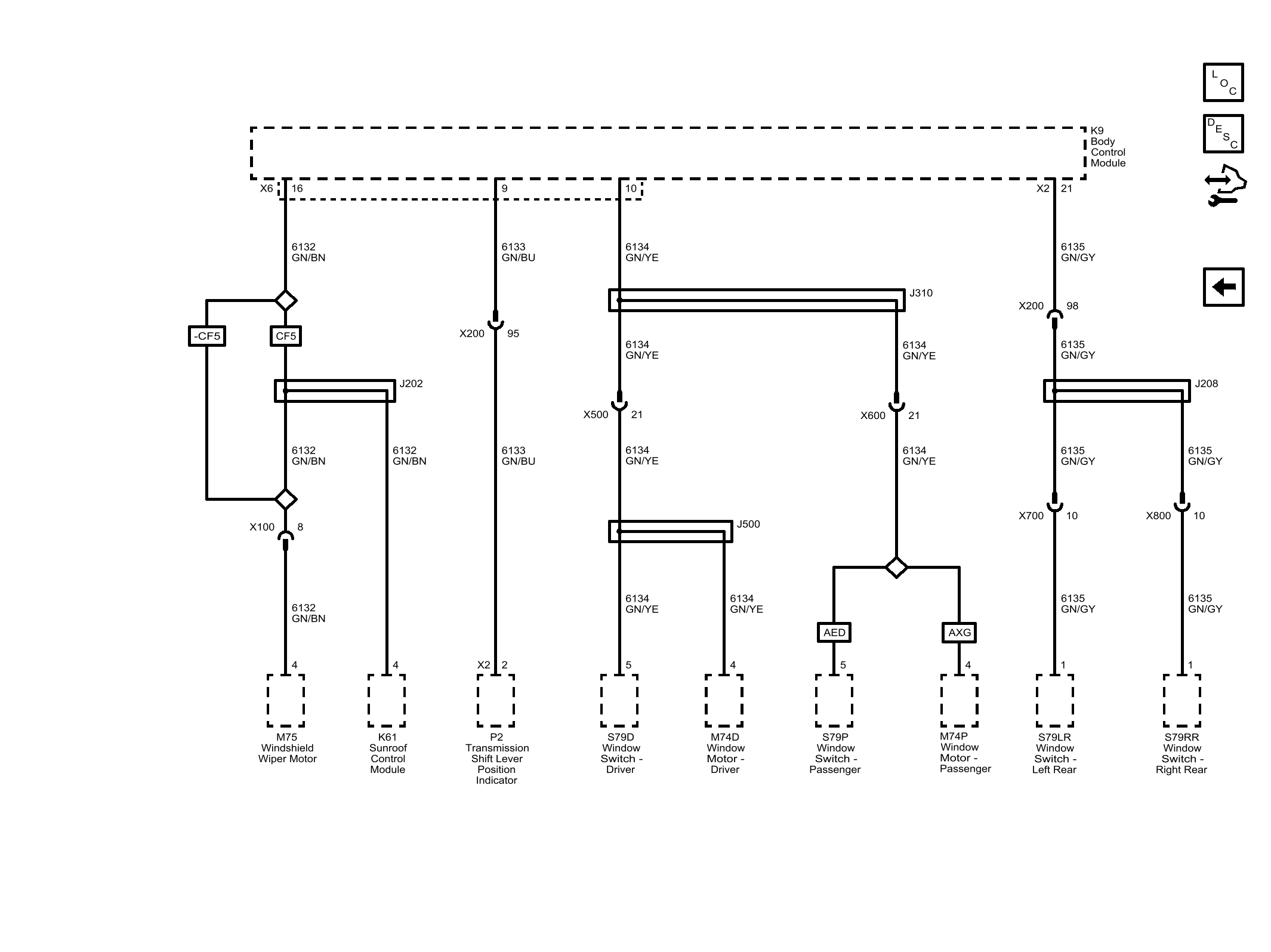

Fig 1: Linear Interconnect Network (LIN)
GM4500304Courtesy of GENERAL MOTORS COMPANY
