Preliminary Procedures
- Rear Side Door Window Belt Reveal Molding Replacement
- Place the rear door window in the full down position.
- It is not necessary to completely remove the weatherstrip. Reposition the edge of the rear side door weatherstrip. Rear Side Door Window Weatherstrip Replacement
|

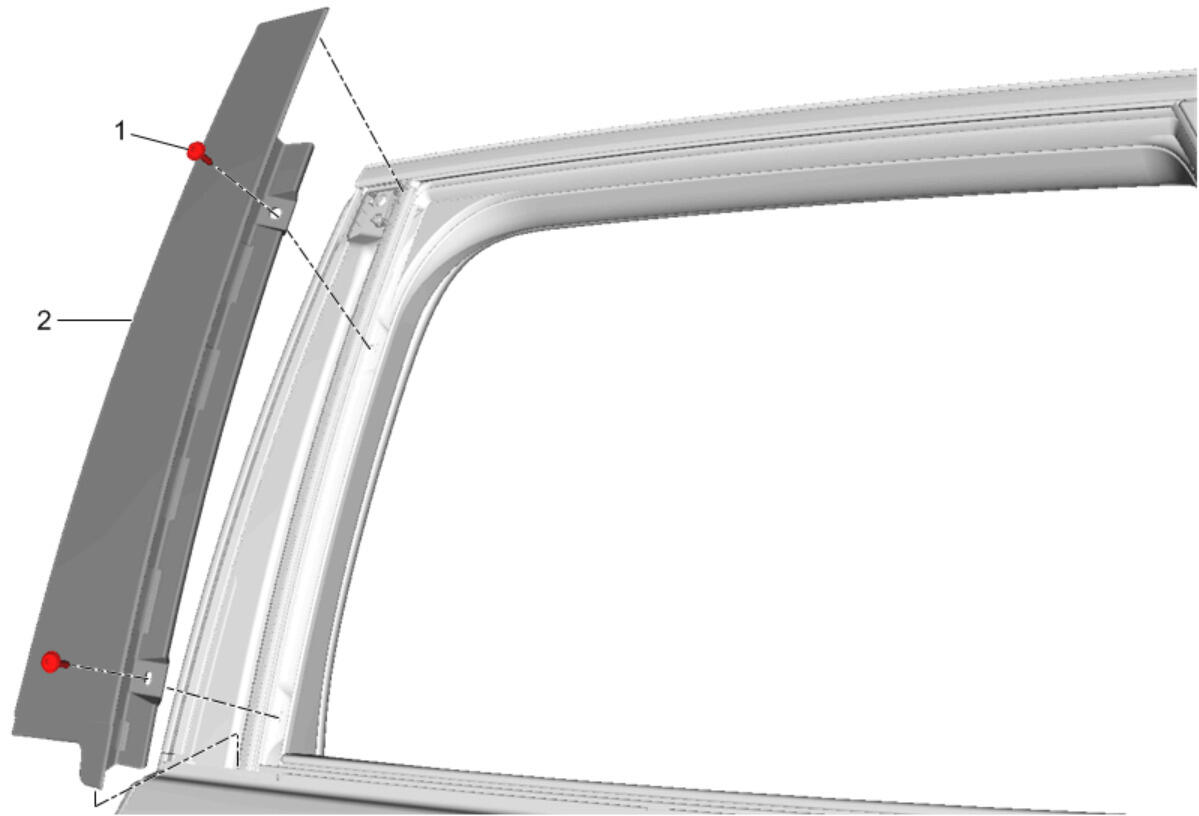

| 1 |
Rear Side Door Window Frame Front Applique Screw [2x]
Tighten
2.5 N.m (22 lb in) |
| 2 |
Rear Side Door Window Frame Front Applique
- Use a solution of 50/50 isopropyl alcohol and water to clean the adhesive surface.
- Peel the protective film from the foam tape and install the rear applique to the vehicle.
|
