Rear Side Door Window Regulator Replacement

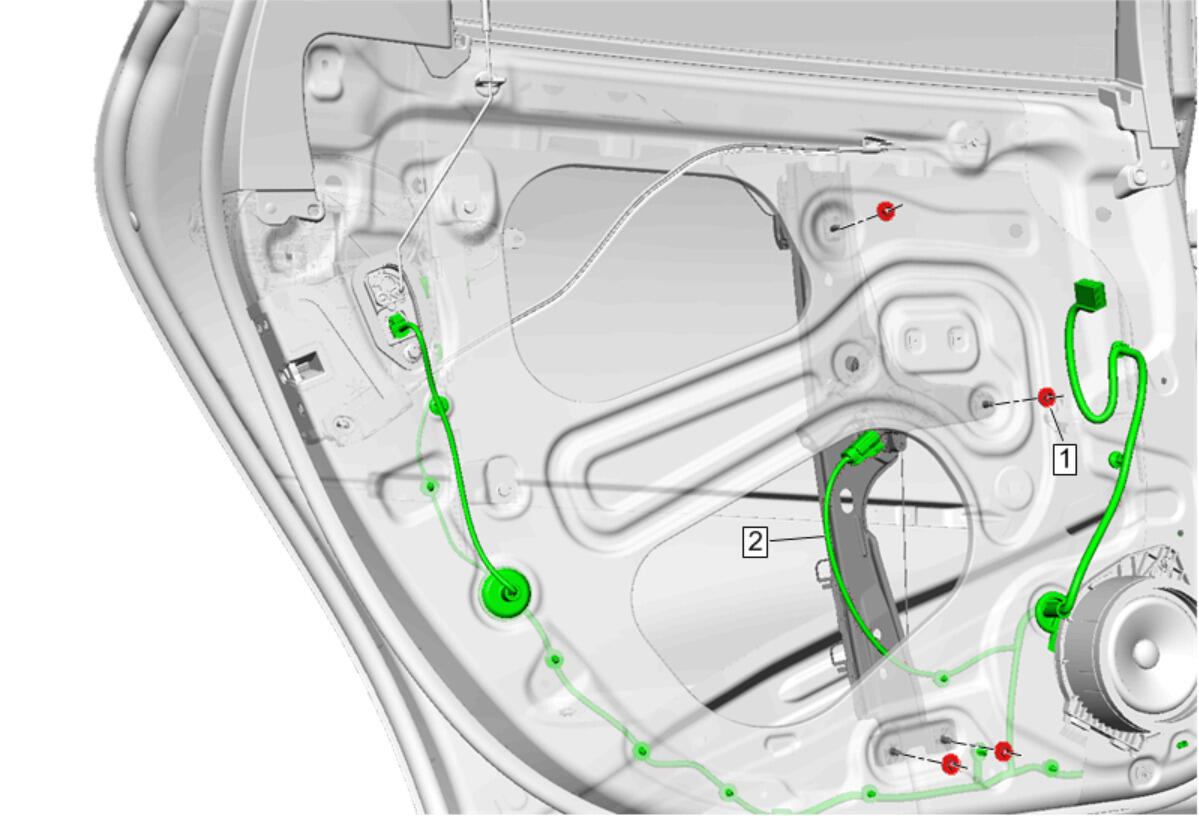

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Rear Side Door Water Deflector Replacement Place the rear side door window in the halfway position to gain access to window regulator guides. Using the proper tool, release the window regulator guide from the window sash. Tape the window to the door frame to prevent it from moving.
1	Rear Side Door Window Regulator Nut [4x] CAUTION: Refer to Fastener Caution . Tighten 11 N.m (97 lb in)
2	Rear Side Door Window Regulator Procedure Release the window from the sash retaining clip. Disconnect the electrical connector. Transfer components as necessary. Inspect the door window for proper operation before installing the door trim panel.

Callout

Component Name

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedures

Rear Side Door Water Deflector Replacement
Place the rear side door window in the halfway position to gain access to window regulator guides.
Using the proper tool, release the window regulator guide from the window sash.
Tape the window to the door frame to prevent it from moving.

Rear Side Door Window Regulator Nut [4x]

CAUTION:

Refer to Fastener Caution .

Tighten
11 N.m (97 lb in)

Rear Side Door Window Regulator

Procedure

Release the window from the sash retaining clip.
Disconnect the electrical connector.
Transfer components as necessary.
Inspect the door window for proper operation before installing the door trim panel.
