Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia Limited, 2017 Chevrolet Traverse, and 2017 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION:

    Refer to Fastener Caution .

  1. Install the motor/actuator. Refer to Sunroof Motor/Actuator Replacement .

    Tighten

    Tighten the screws to 3.5 N.m (31 lb in).

  2. Connect the electrical connector to the motor/actuator.

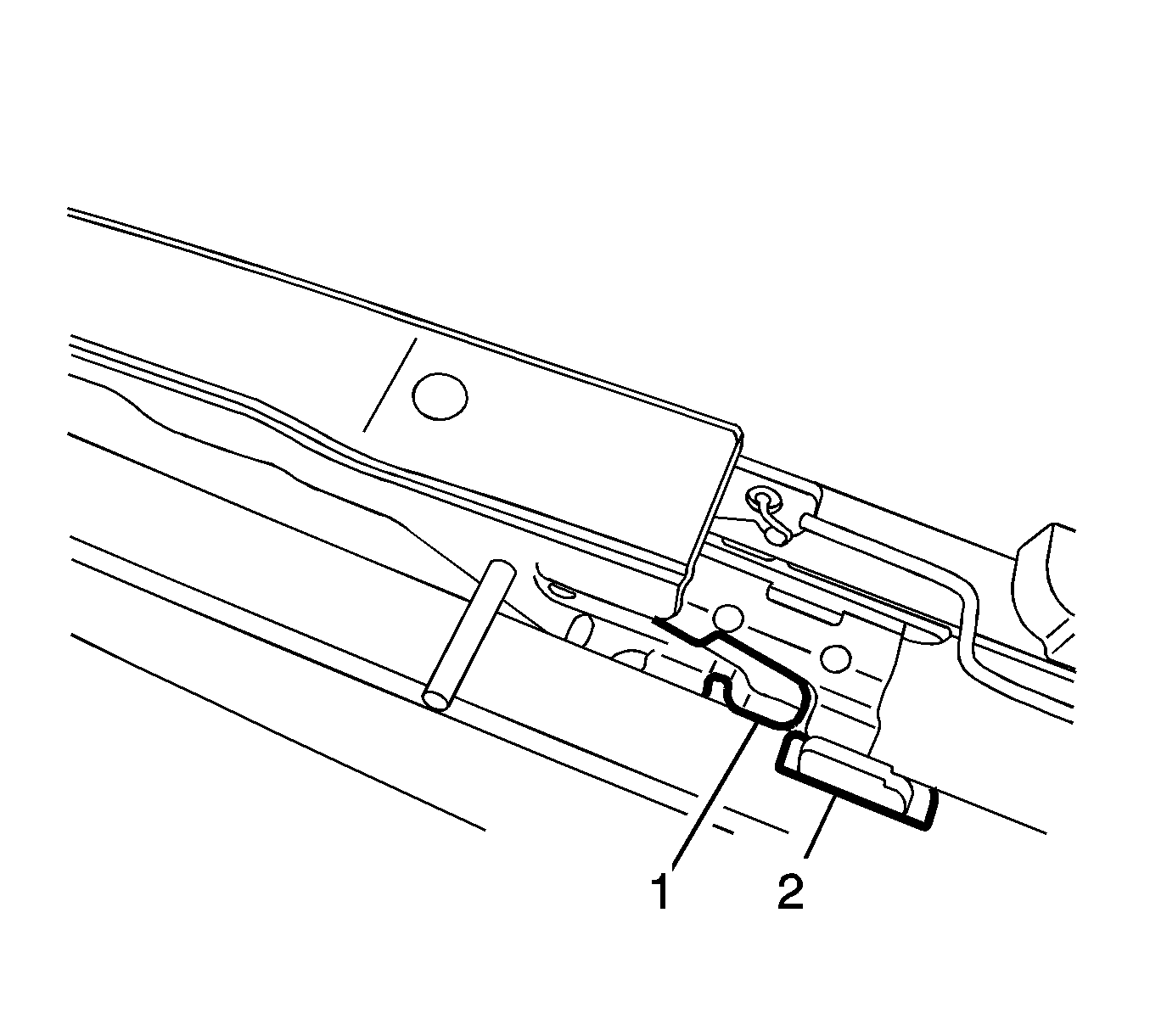

    3. Fig 1: Sunroof Track Dowel Pins And Holes
    GM2413522Courtesy of GENERAL MOTORS COMPANY
  3. Remove the dowel pin (1) from the holes (2) on both sides of the sunroof frame that held the cams in position while installing the motor/actuator.
  4. Install the sunroof window. Refer to Sunroof Window Replacement .

    Tighten

    Tighten the screws to 4 N.m (35 lb in).

  5. Verify the operation of the sunroof.
  6. Perform the Initialization/Teach Procedure. Refer to Sunroof Motor/Actuator Initialization/Teach Process (New Motor) Sunroof Motor/Actuator Initialization/Teach Process (New Roller Sunshade) Sunroof Motor/Actuator Initialization/Teach Process (Existing Motor) Sunroof Motor/Actuator Initialization/Teach Process (Existing Roller Sunshade) .
  7. Install the headliner. Refer to Headlining Trim Panel Replacement .
