Removal Procedure

Remove the front floor console assembly. Refer to Front Floor Console Replacement (Buick)Front Floor Console Replacement (Chevrolet) .
Ensure that the park brake lever is in the fully released position.
Disconnect the electrical connector from the parking brake indicator switch.

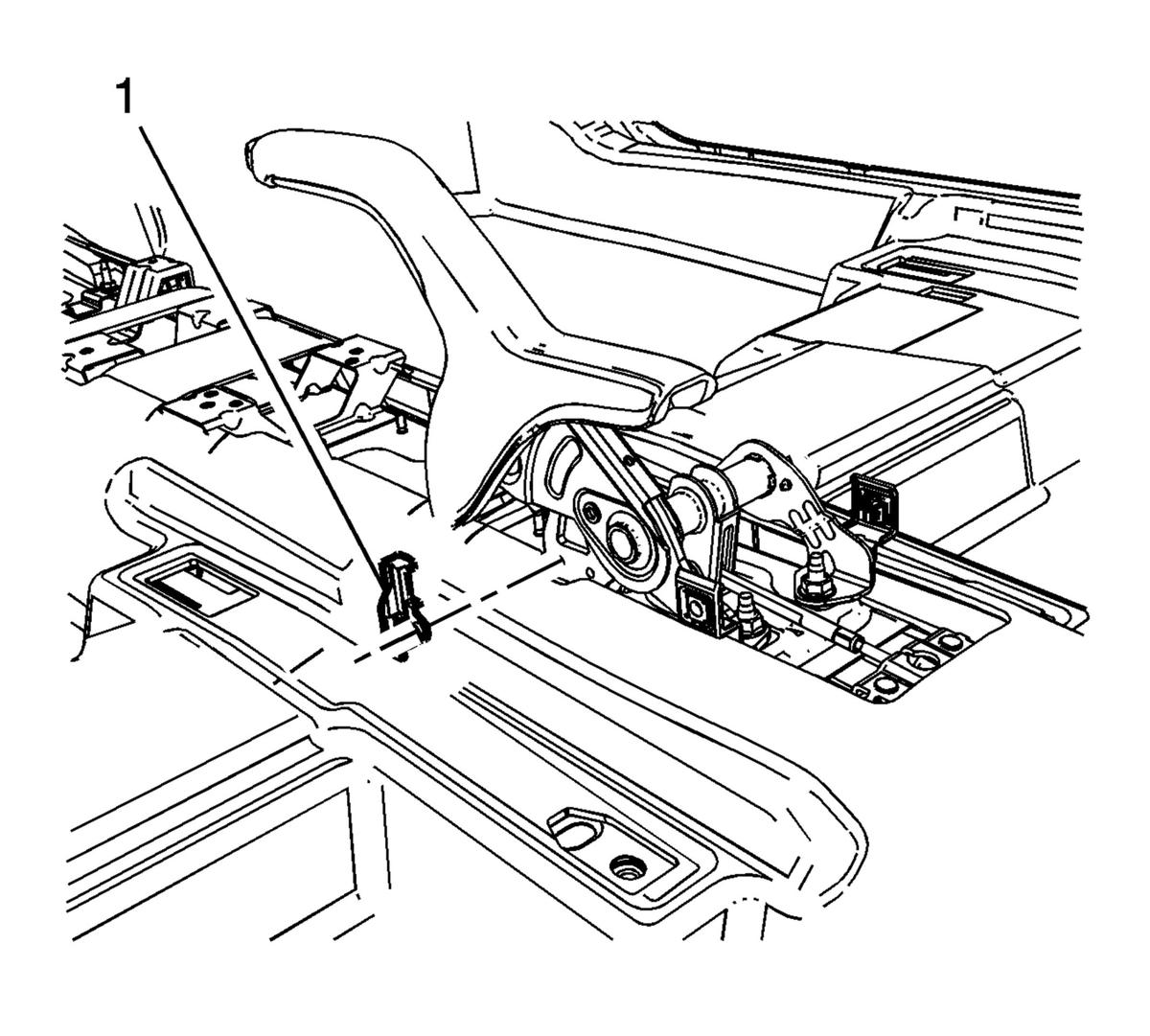

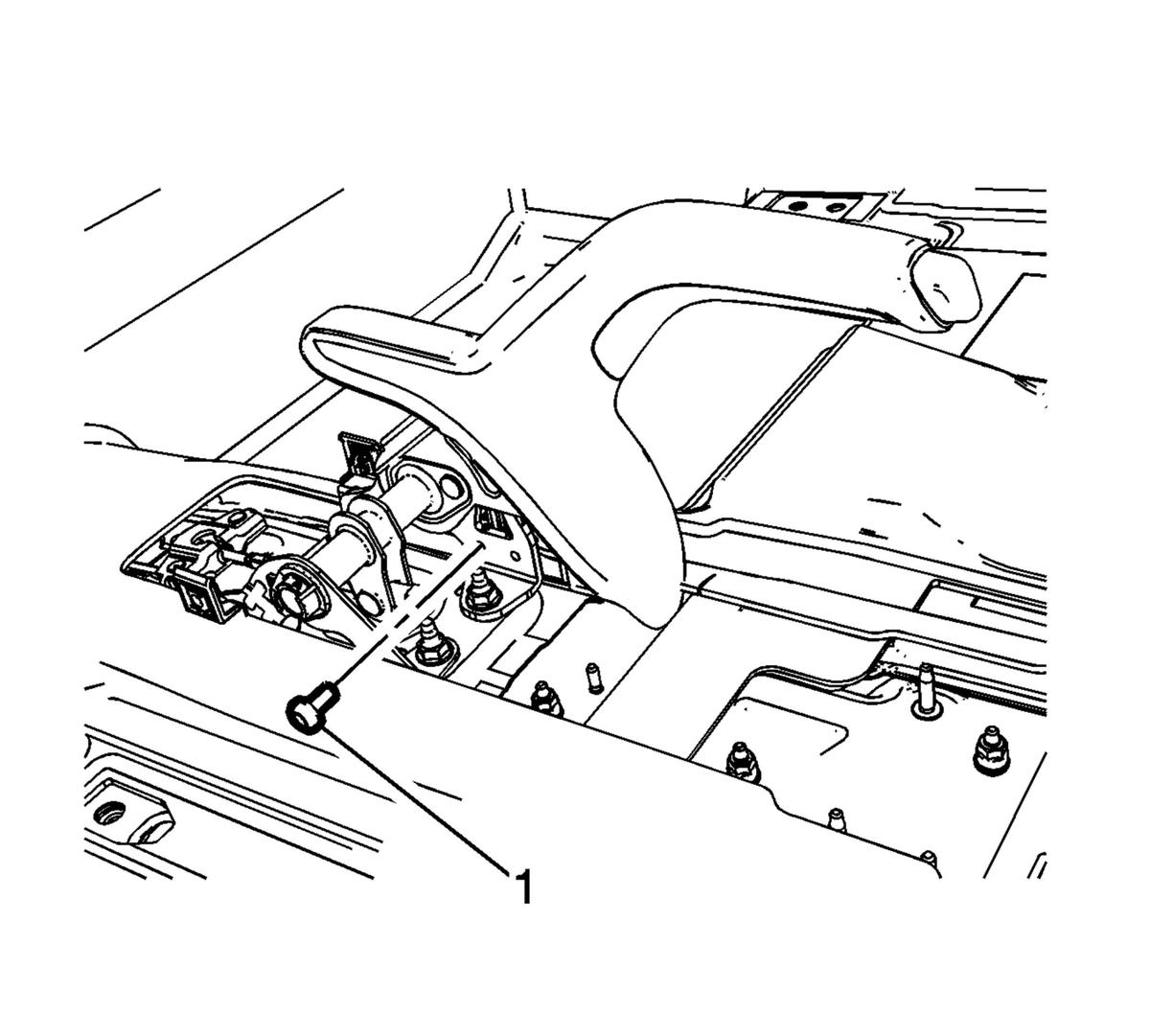

Remove the parking brake indicator switch bolt (1).
Remove the parking brake indicator switch (1).
