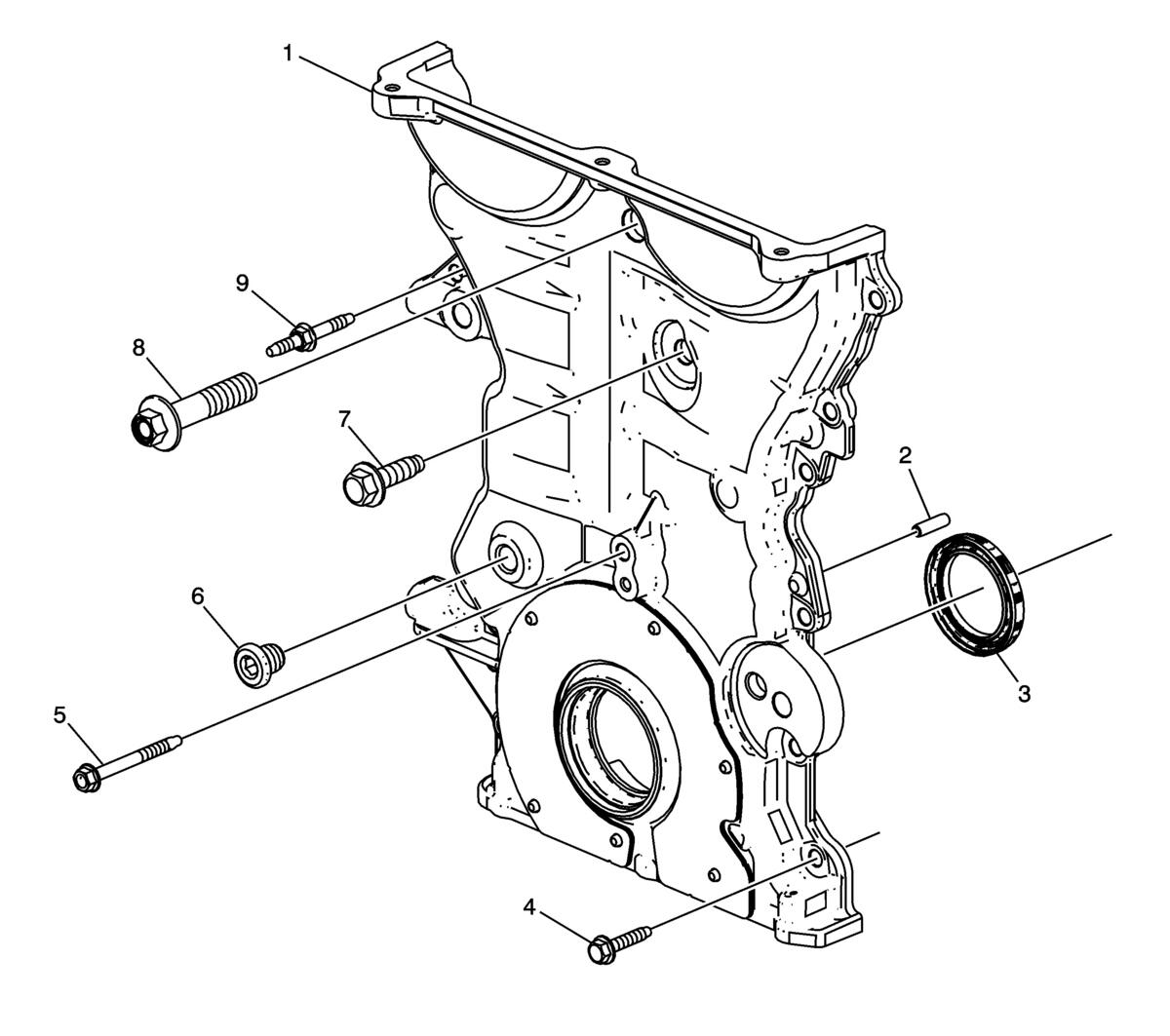

Engine Front Cover and Components
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Engine Front Cover |
| 2 | Engine Front Cover Locating Pin |
| 3 | Crankshaft Front Oil Seal |
| 4 | Engine Front Cover Bolt - M6 (Qty: 11) |
| 5 | Engine Front Cover Bolt - M6 (Qty: 1) |
| 6 | Engine Front Cover Hole Plug |
| 7 | Engine Front Cover Bolt - M14 (Qty: 1) |
| 8 | Engine Front Cover Bolt - M14 (Qty: 1) |
| 9 | Engine Front Cover Stud (Qty: 1) |
