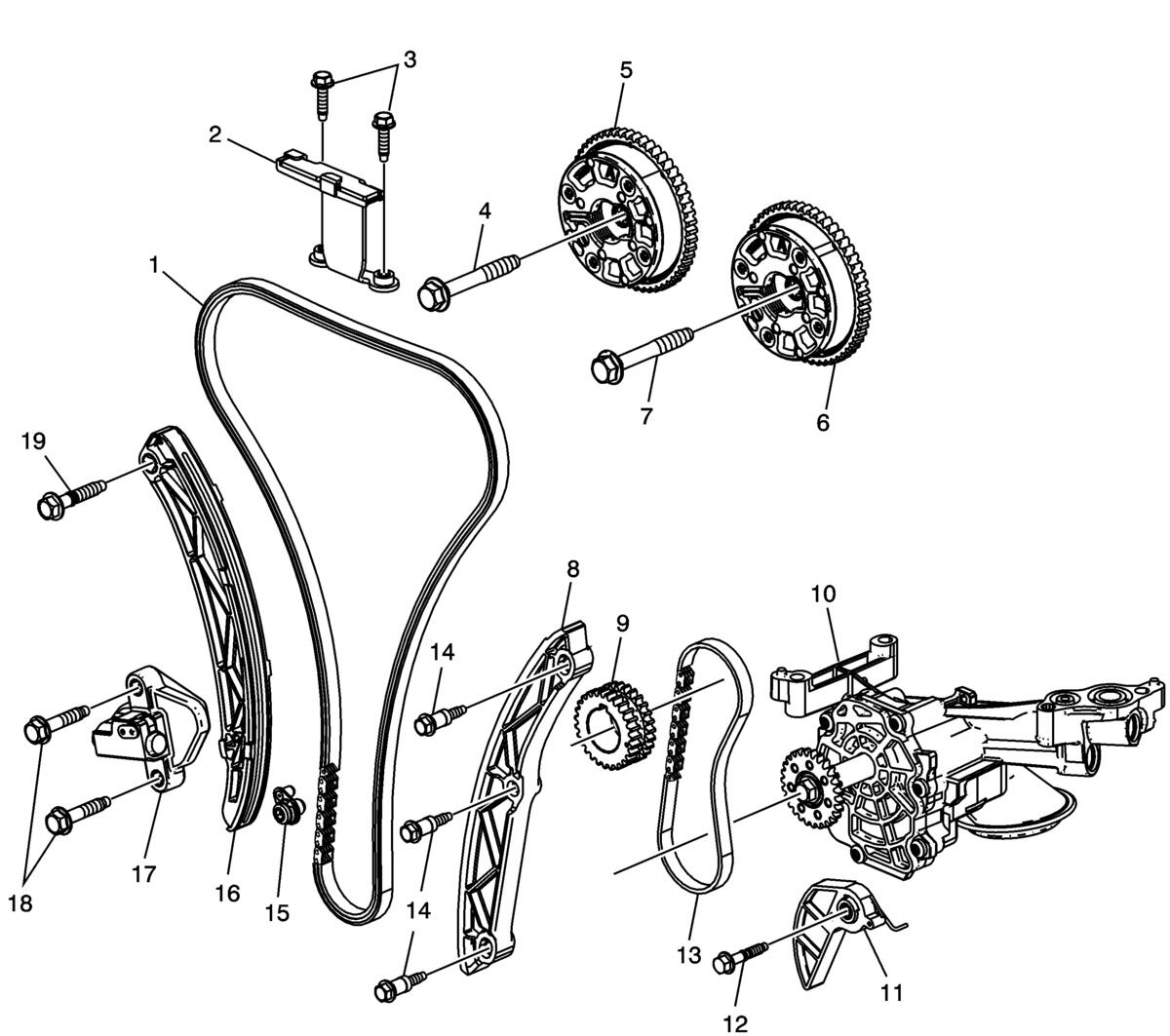

Timing Chain and Components
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Timing Chain |
| 2 | Timing Chain Guide - to Cylinder Head |
| 3 | Timing Chain Guide Bolt |
| 4 | Camshaft Position Actuator Bolt |
| 5 | Camshaft Position Actuator Assembly - Intake |
| 6 | Camshaft Position Actuator Assembly - Exhaust |
| 7 | Camshaft Position Actuator Bolt |
| 8 | Timing Chain Guide - Exhaust Side |
| 9 | Crankshaft Sprocket |
| 10 | Oil Pump Assembly |
| 11 | Oil Pump Drive Chain Tensioner Assembly |
| 12 | Oil Pump Drive Chain Tensioner Bolt |
| 13 | Oil Pump Drive Chain |
| 14 | Timing Chain Guide Bolt (Qty: 3) |
| 15 | Timing Chain Oil Nozzle |
| 16 | Timing Chain Tensioner Shoe Assembly |
| 17 | Timing Chain Tensioner Assembly |
| 18 | Timing Chain Tensioner Bolt |
| 19 | Timing Chain Tensioner Shoe Bolt |
