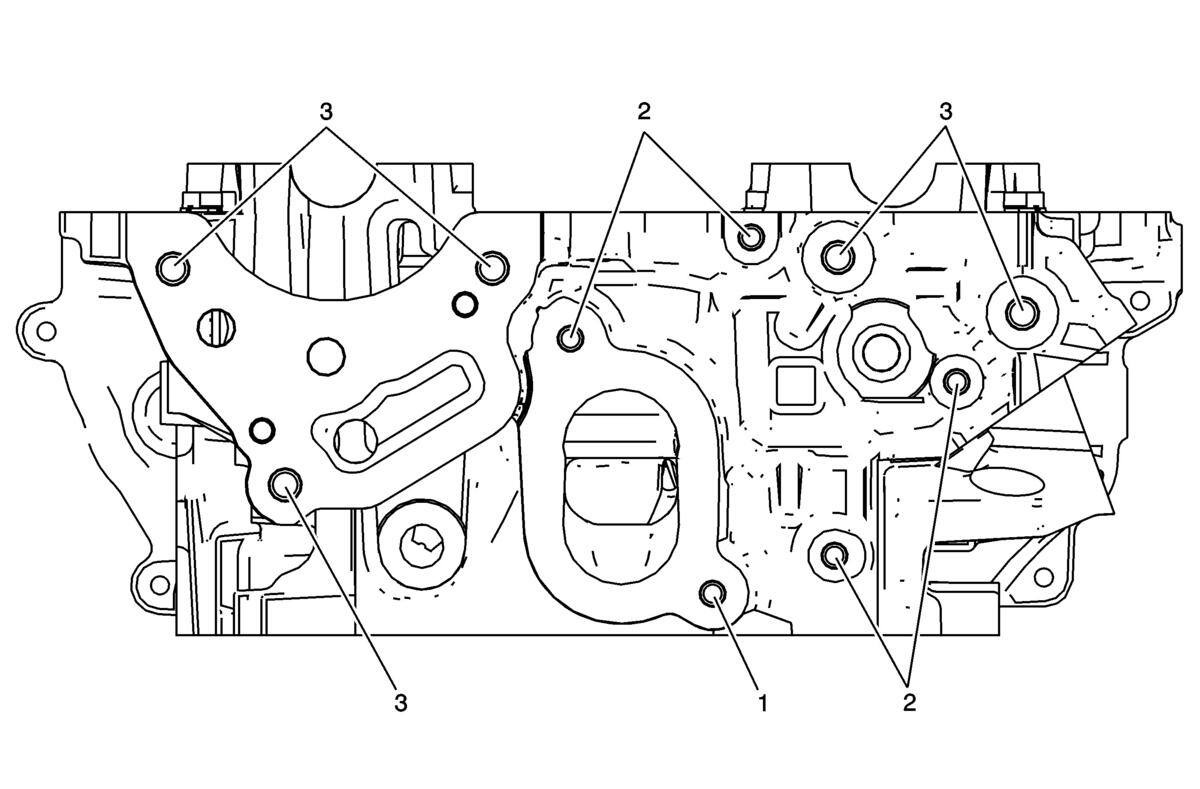

Cylinder Head - Back View
WARNING: This page is about a different variant/trim than selected.
Cylinder Head - Back View
| Service Call Out | Thread Size | Insert | Drill | Counterbore Tool | Tap | Driver | Drill Depth (Maximum) | Tap Depth (Maximum) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| EN 42385-400 | MM | (IN) | MM | (IN) | ||||||
| 1 | M6x1.0 | 205 | 201 | 202 | 203 | 204 | 19.0 | 0.747 | 19.0 | 0.747 |
| 2 | M6x1.0 | 63 | 201 | 202 | 203 | 204 | 22.0 | 0.865 | 22.0 | 0.865 |
| 3 | M8x1.25 | 61 | 206 | 207 | 208 | 209 | 29.0 | 1.142 | 29.0 | 1.142 |
