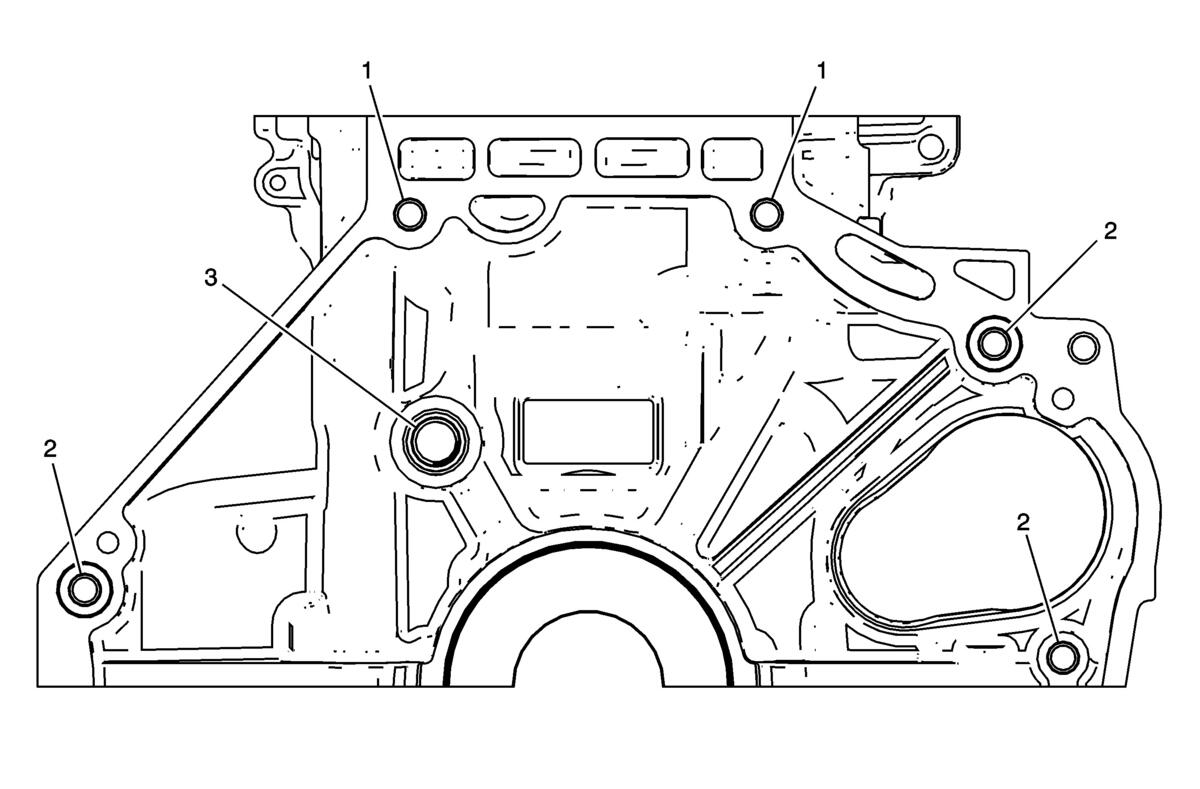

Engine Block - Rear View
WARNING: This page is about a different variant/trim than selected.
Engine Block - Rear View
| Service Call Out |
Thread Size |
Insert |
Drill |
Counterbore Tool |
Tap |
Driver |
Drill Depth (Maximum) |
Tap Depth (Maximum) |
| EN 42385-400 |
MM |
(IN) |
MM |
(IN) |
| 1 |
M10x1.5 |
904 |
211 |
212 |
213 |
903 |
36.0 |
1.417 |
36.0 |
1.417 |
| 2 |
M10x1.5 |
215 |
211 |
212 |
213 |
214 |
25.0 |
0.984 |
25.0 |
0.984 |
| 3 |
Not Serviced |
