Engine Block - Right Side View
WARNING: This page is about a different variant/trim than selected.

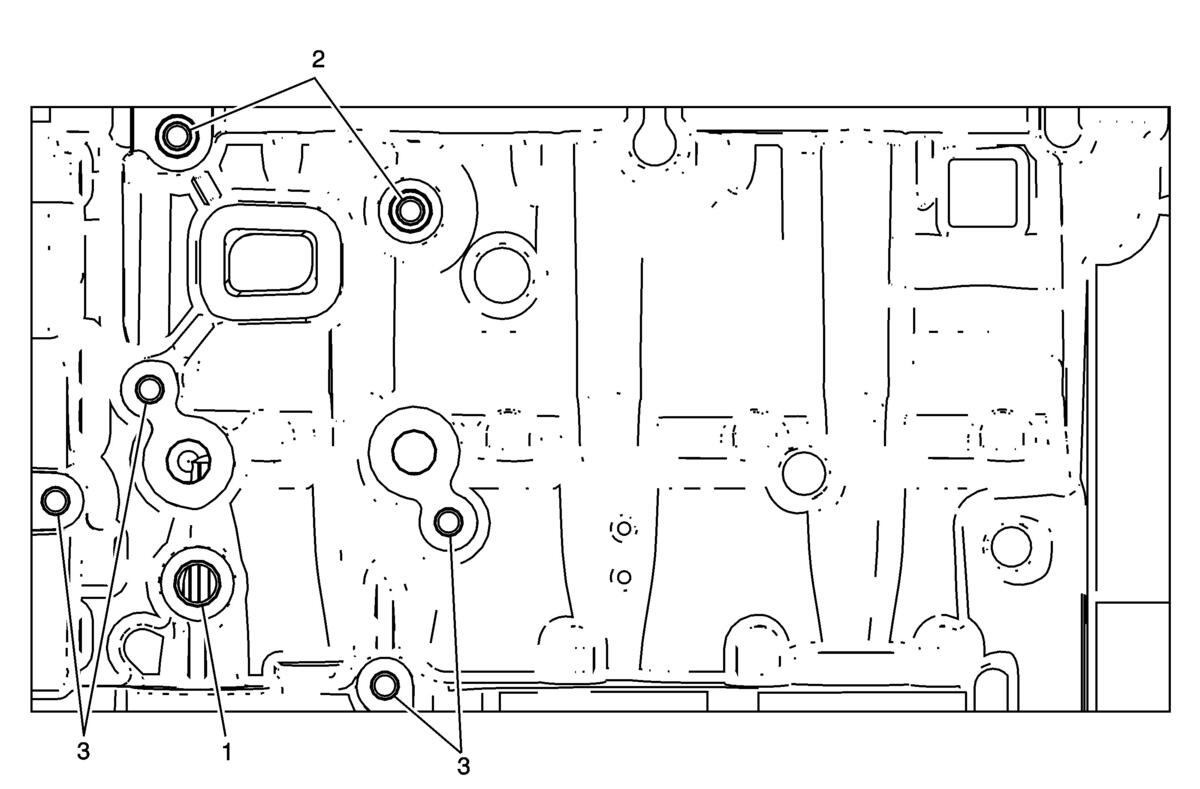

Engine Block - Right Side View
| Service Call Out | Thread Size | Insert | Drill | Counterbore Tool | Tap | Driver | Drill Depth (Maximum) | Tap Depth (Maximum) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| EN 42385-400 | MM | (IN) | MM | (IN) | ||||||
| 1 | M14x1.5 | 735 | 409 | 410 | 411 | 412 | 20.0 | 0.787 | 20.0 | 0.787 |
| 2 | M8x1.25 | 210 | 206 | 207 | 208 | 209 | 37.0 | 1.457 | 37.0 | 1.457 |
| 3 | M8x1.25 | 61 | 206 | 207 | 208 | 209 | 29.0 | 1.141 | 29.0 | 1.141 |
