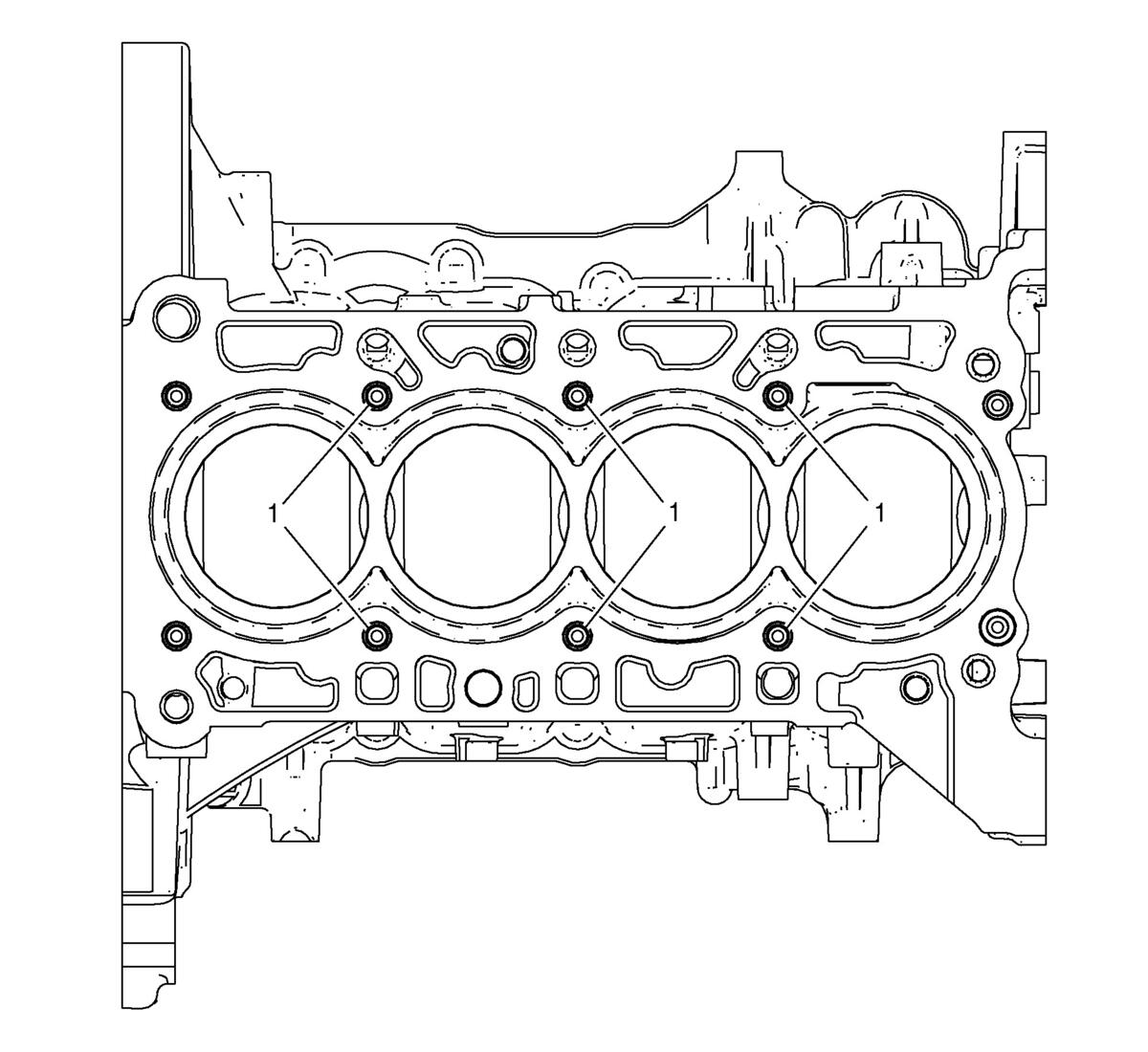

Engine Block - Top View
WARNING: This page is about a different variant/trim than selected.
Engine Block - Top View
| Service Call Out |
Thread Size |
Insert |
Drill |
Counterbore Tool |
Tap |
Driver |
Drill Depth (Maximum) |
Tap Depth (Maximum) |
| EN 42385-900 |
MM |
(IN) |
MM |
(IN) |
| 1 |
M10x1.5 |
904 |
901 |
901 |
903 |
904 |
86.38 |
3.40 |
86.38 |
3.40 |
