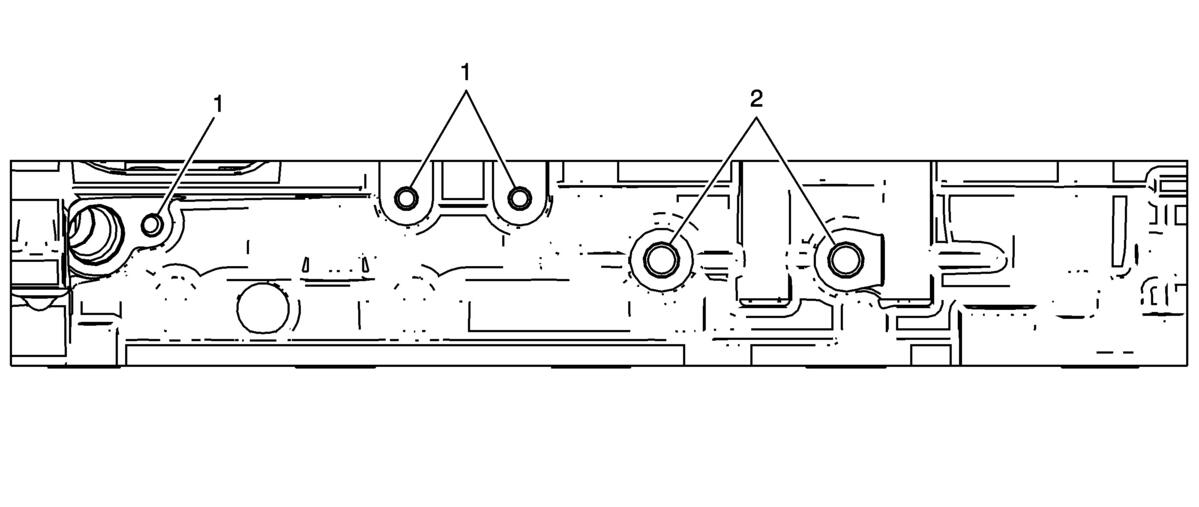

Lower Crankcase - Left Side View
WARNING: This page is about a different variant/trim than selected.
Lower Crankcase - Left Side View
| Service Call Out |
Thread Size |
Insert |
Drill |
Counterbore Tool |
Tap |
Driver |
Drill Depth (Maximum) |
Tap Depth (Maximum) |
| EN 42385-400 |
MM |
(IN) |
MM |
(IN) |
| 1 |
M6x1.0 |
63 |
201 |
202 |
203 |
204 |
22.0 |
0.865 |
22.0 |
0.865 |
| 2 |
M10x1.5 |
420 |
211 |
212 |
213 |
214 |
34.0 |
1.338 |
34.0 |
1.338 |
