Shift Lock Control Wiring Schematics (Chevrolet)
›

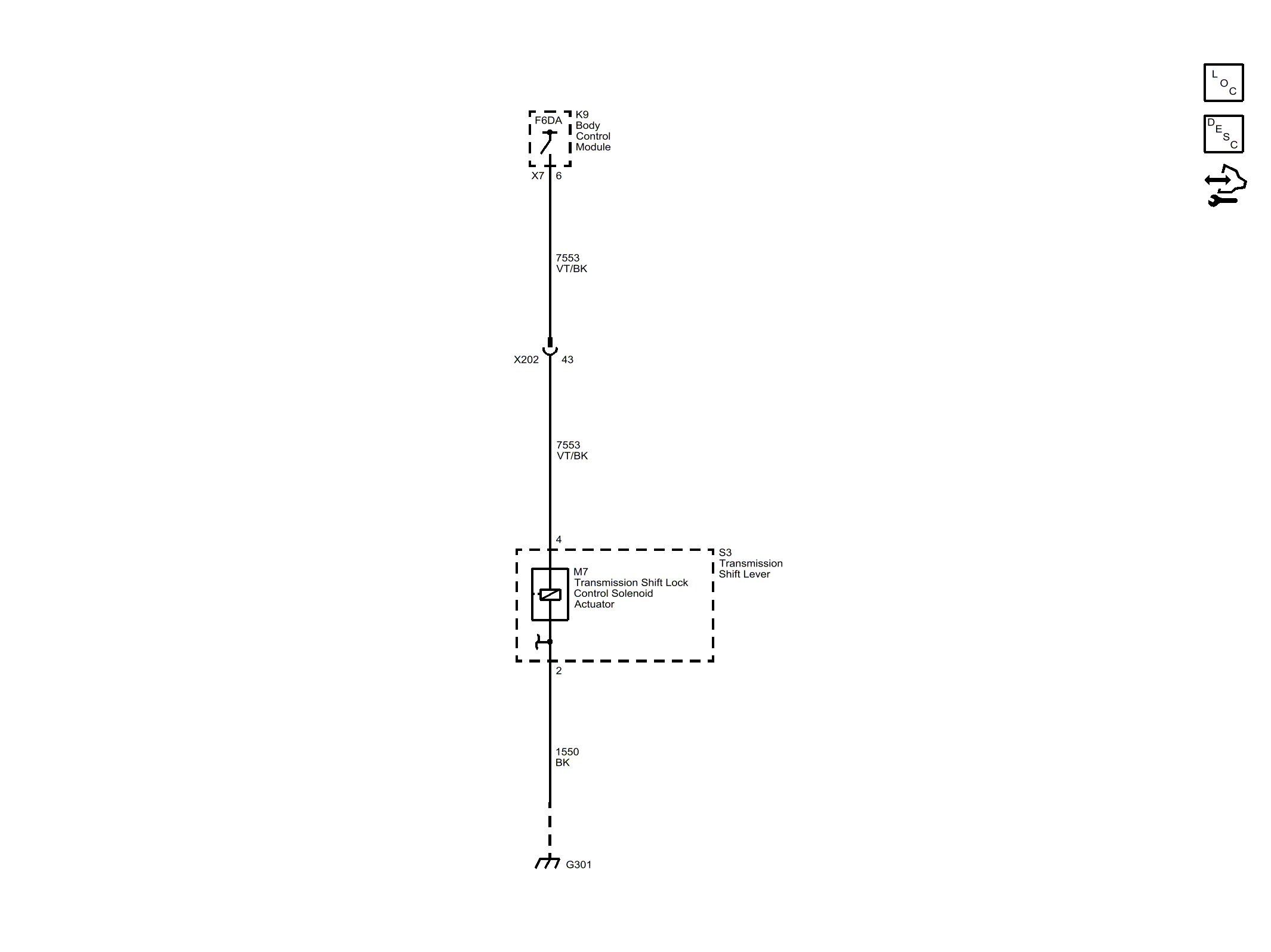

Shift Lock Control (Chevrolet with MM1)
Shift Lock Control (Chevrolet with MM1)
