Battery Tray Replacement

Courtesy of GENERAL MOTORS COMPANY

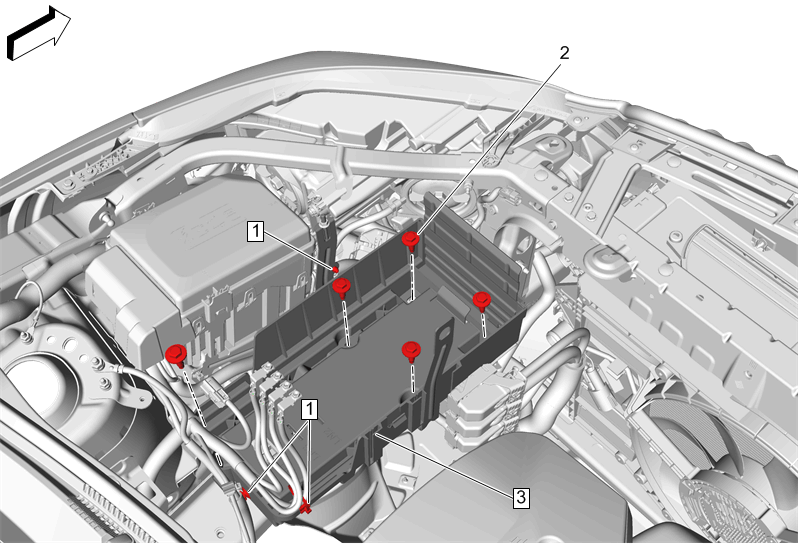

Callout	Component Name
Preliminary Procedures Battery Replacement Engine Control Module Bracket Replacement (LTG)Engine Control Module Bracket Replacement (LCV)
1	Retainer [3x]
2	Battery Tray Bolt [5x] CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
3	Battery Tray
