Exhaust Muffler Heat Shield Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . Preliminary Procedure Lifting and Jacking the Vehicle Exhaust Muffler Replacement

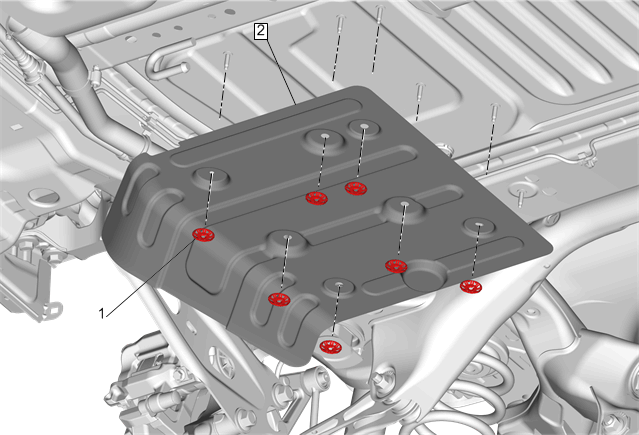

1	Exhaust Muffler Heat Shield Fastener [7x] CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Exhaust Muffler Heat Shield

Callout

Component Name

WARNING:

Preliminary Procedure

Exhaust Muffler Heat Shield Fastener [7x]

CAUTION:

Tighten
1.5 N.m (13 lb in)

Exhaust Muffler Heat Shield
