Exhaust Pipe Front Hanger Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

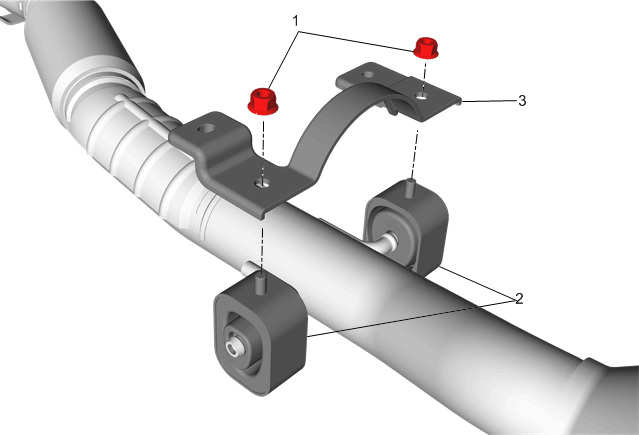

Callout	Component Name
WARNING: Refer to Moving Parts and Hot Surfaces Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Exhaust Front Pipe Replacement (LTG) Exhaust Front Pipe Replacement (LCV)
1	Exhaust Pipe Hanger Bracket Nut CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Exhaust Isolator
3	Exhaust Pipe Front Hanger Bracket
