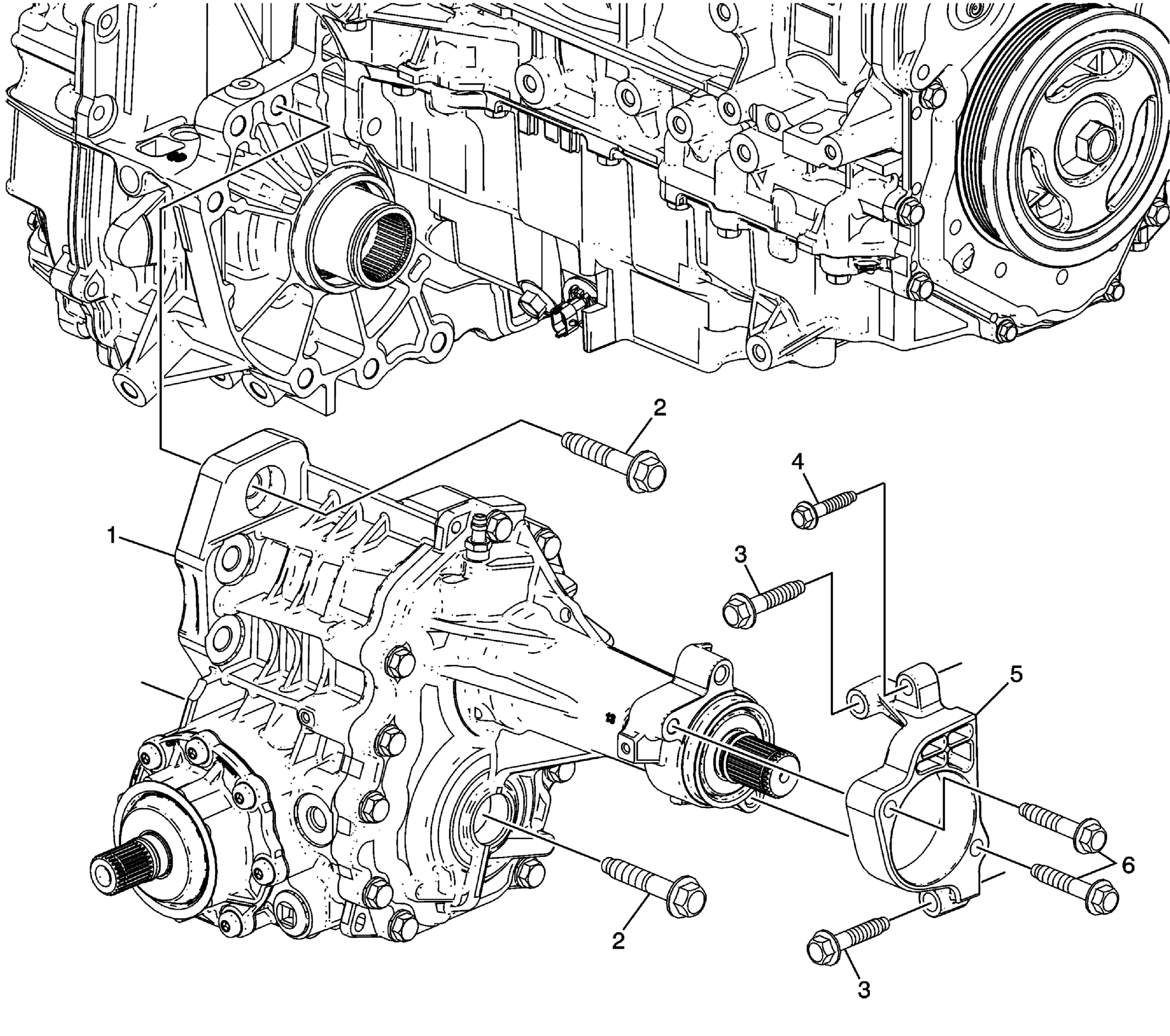

Power Transfer Unit Mounting to M2D Transmission

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Power Transfer Unit
2	Power Transfer Unit-to-Transmission Bolt
3	Power Transfer Unit-to-Engine Bracket Bolt
4	Power Transfer Unit-to-Engine Bracket Bolt
5	Power Transfer Unit Bracket
6	Power Transfer Unit Bracket-to-Extension Housing Bolt
