Home › Buick › 2018 › Envision Preferred, AWD › Repair and Diagnosis › Body & Frame › Door Locks › Keyless Entry System And Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry - Passive and Keyless Start

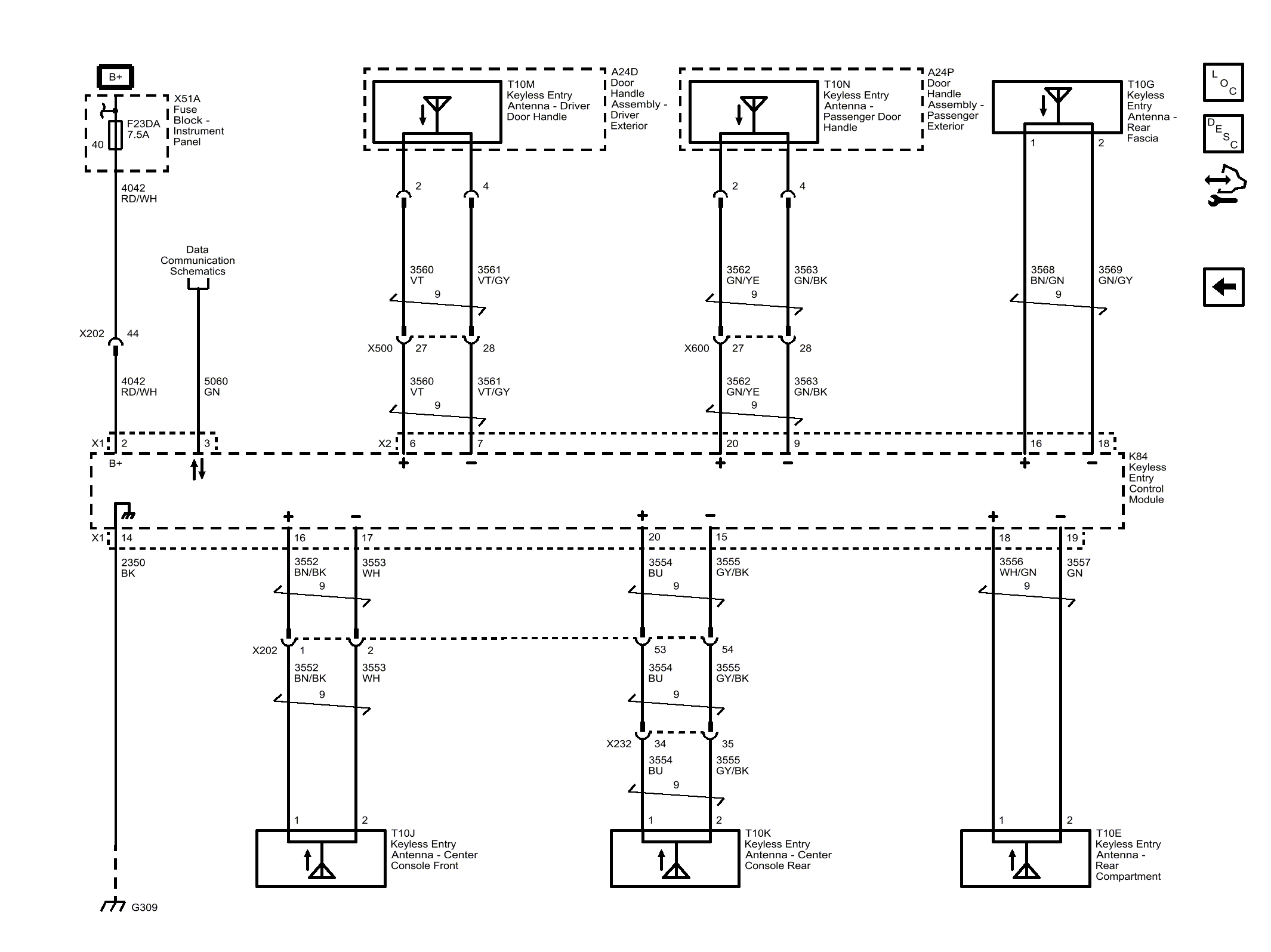

Keyless Entry - Passive and Keyless Start

GM4725037Courtesy of GENERAL MOTORS COMPANY
