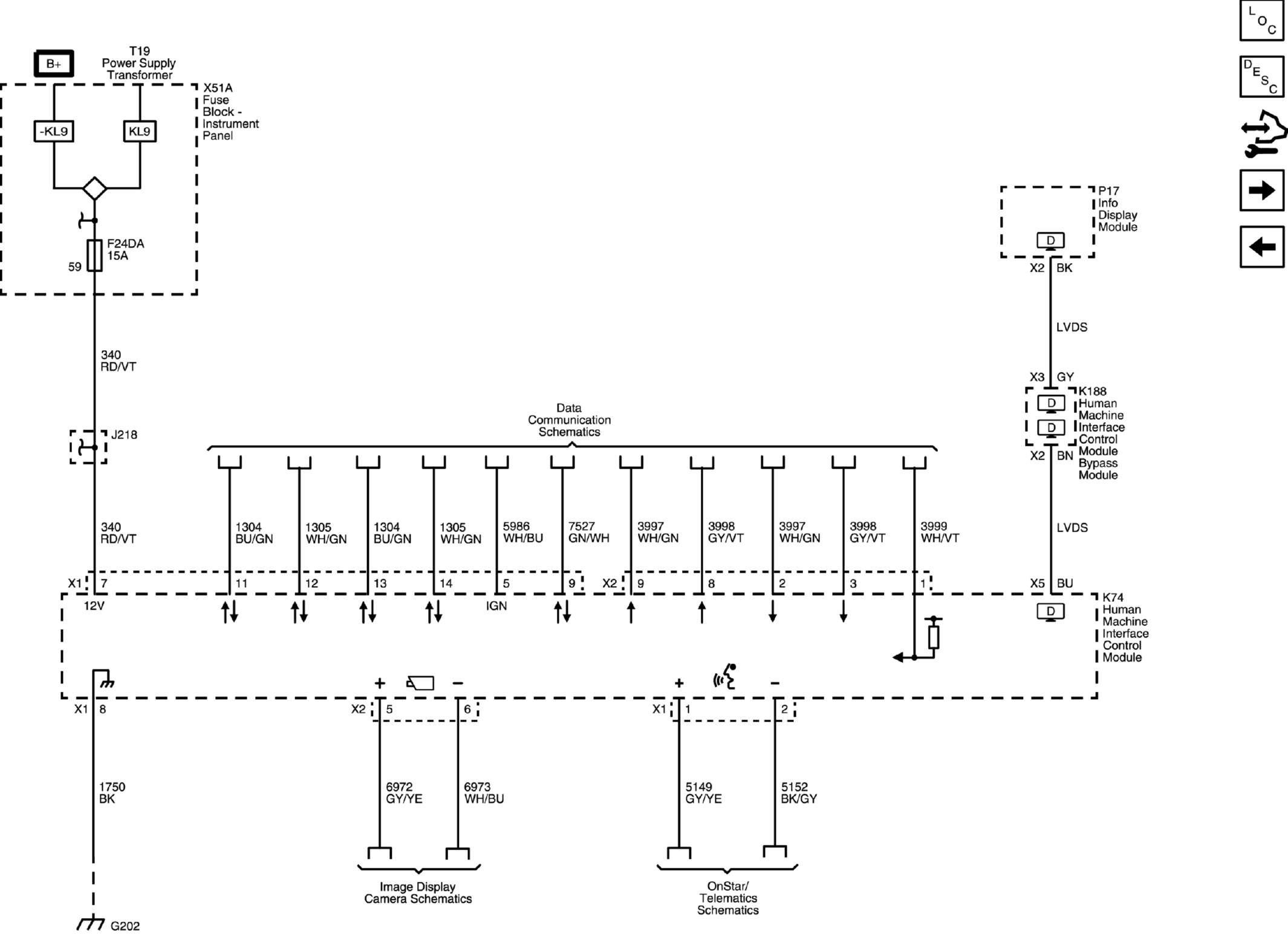

Human Machine Interface Control and Info Display Modules Power, Ground and Serial Data
Human Machine Interface Control and Info Display Modules Power, Ground and Serial Data
