Windshield Wiper System Module Replacement

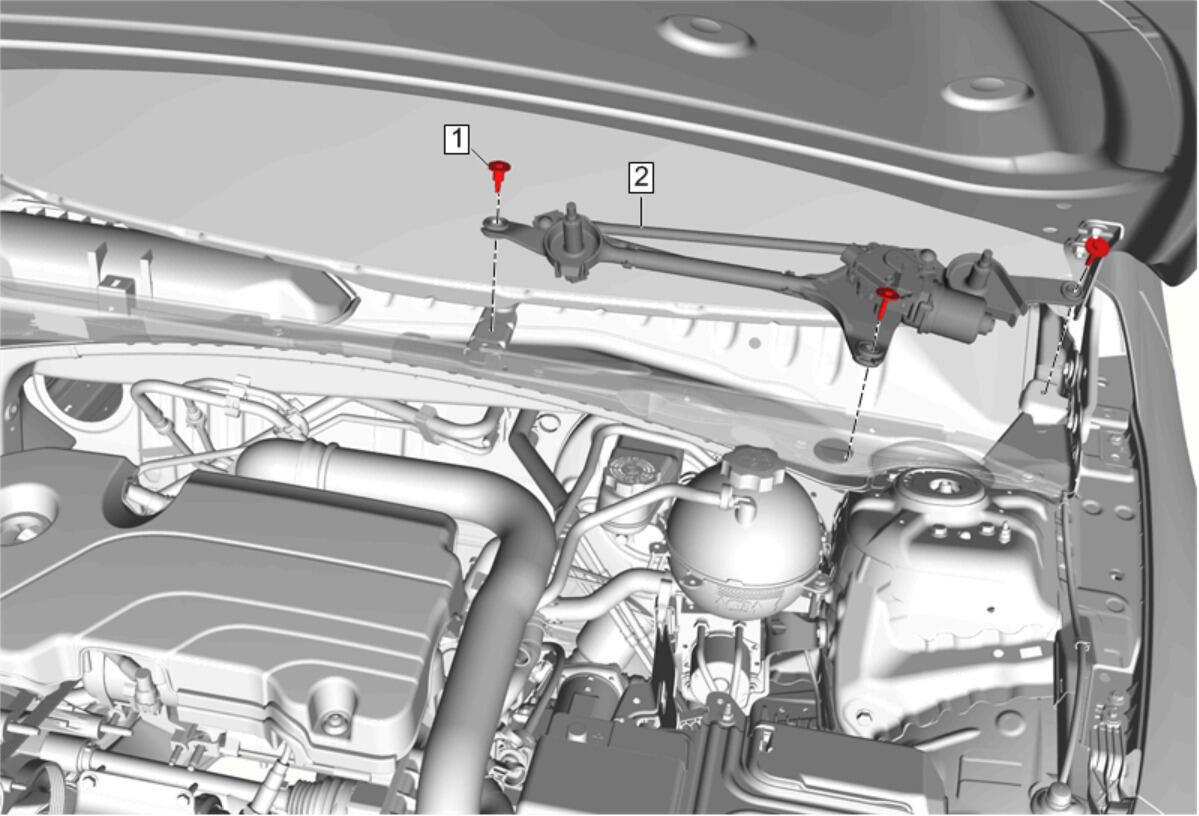

GM4212560

Callout

Component Name

Preliminary Procedure
Air Inlet Grille Panel Replacement

1

Windshield Wiper System Module Bolt [3x]

CAUTION:

Refer to Fastener Caution .

Tighten
8 N.m (71 lb in)

2

Windshield Wiper System Module

Procedure

Slide the windshield wiper transmission inboard to release the grommet from the plenum.
Disconnect the electrical connector.
Remove the windshield wiper transmission from the vehicle.
Transfer components as necessary.
