Multifunction Power Supply Converter Bracket Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the left side Floor Rear Air Outlet Duct Adapter. Refer to Floor Rear Air Outlet Duct Adapter Replacement (Left)Floor Rear Air Outlet Duct Adapter Replacement (Right) |
|

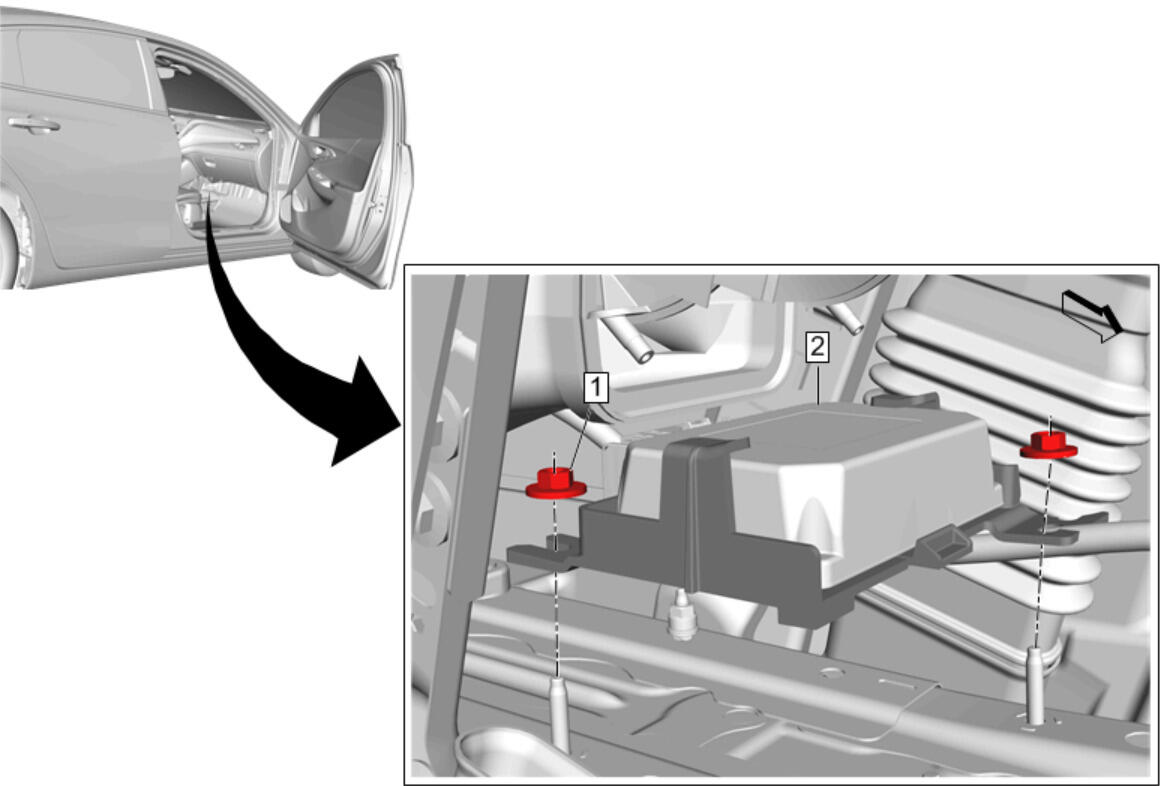

| 1 | Multifunction Power Supply Converter Bracket Nut [2x]
CAUTION:
Refer to Fastener Caution . Tighten 6 N.m (53 lb in) |
| 2 | Multifunction Power Supply Converter Bracket Procedure
|
