Engine Control Module Bracket Replacement

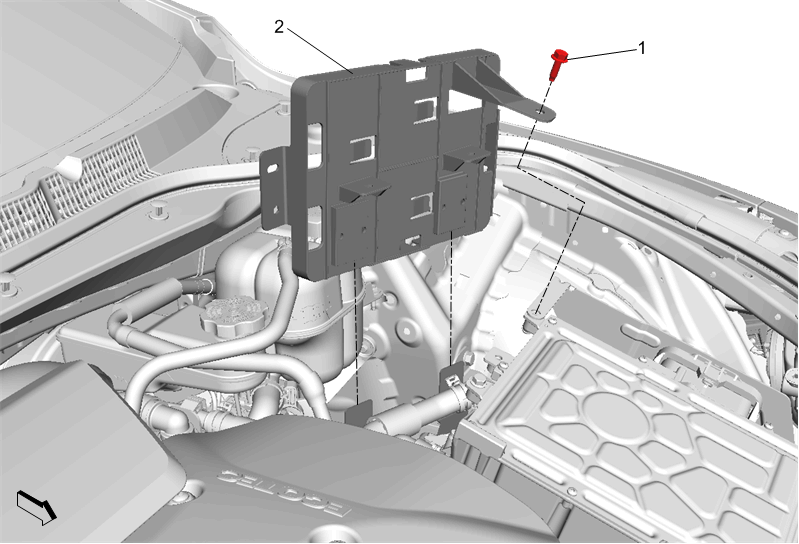

Callout	Component Name
Preliminary Procedures Engine Control Module Replacement Remove wiring harness from engine control module bracket.
1	Engine Control Module Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Engine Control Module Bracket Procedure Release retaining tab to remove engine control module bracket from drive motor generator power inverter module bracket.
