Installation Procedure
Drive Motor Power Inverter Module Shield (2) - Install

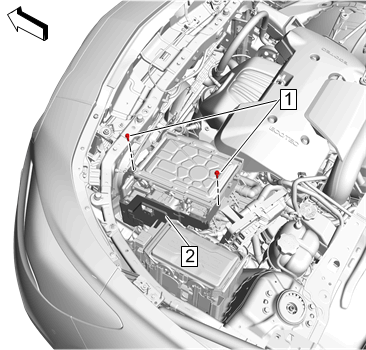

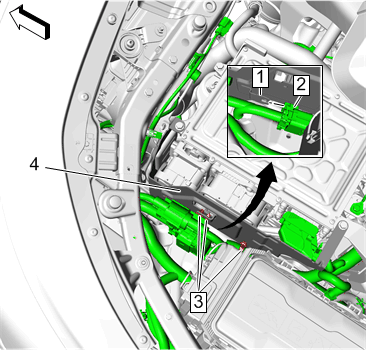

- Drive Motor Power Inverter Module Shield Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)
Electrical Connector (2) @ Retaining Tab (1) - Engage
- Retainer (3) @ Drive Motor Power Inverter Module Shield (4) - Engage [3x]

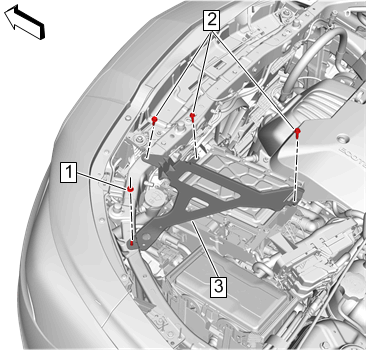

Drive Motor Power Inverter Module Cover (3) - Install - Drive Motor Power Inverter Module Cover Replacement
CAUTION:
Refer to Fastener Caution
