Installation Procedure

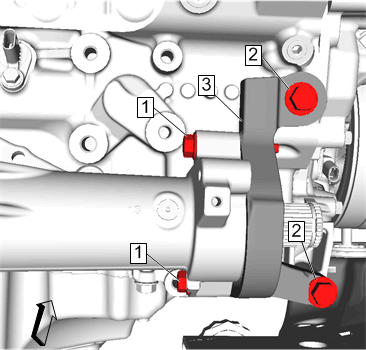

  1. GM4441121

    Position the bracket (3) to the transfer case.

    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the transfer case-to-transmission bolts (1) and tighten to 22 N.m (16 lb ft).
  3. Install the transfer case-to-transmission bolt (2) and tighten to 58 N.m (43 lb ft).
  4. Install the right wheel drive shaft. Rear Wheel Drive Shaft Replacement - Right Side
  5. Install the power transfer unit heat shield. Power Transfer Unit Heat Shield Replacement
  6. Install the three way catalytic converter. Three-Way Catalytic Converter Replacement (Bank 1, AWD)Three-Way Catalytic Converter Replacement (Bank 2)
