Rear Side Door Window Replacement

Courtesy of GENERAL MOTORS COMPANY

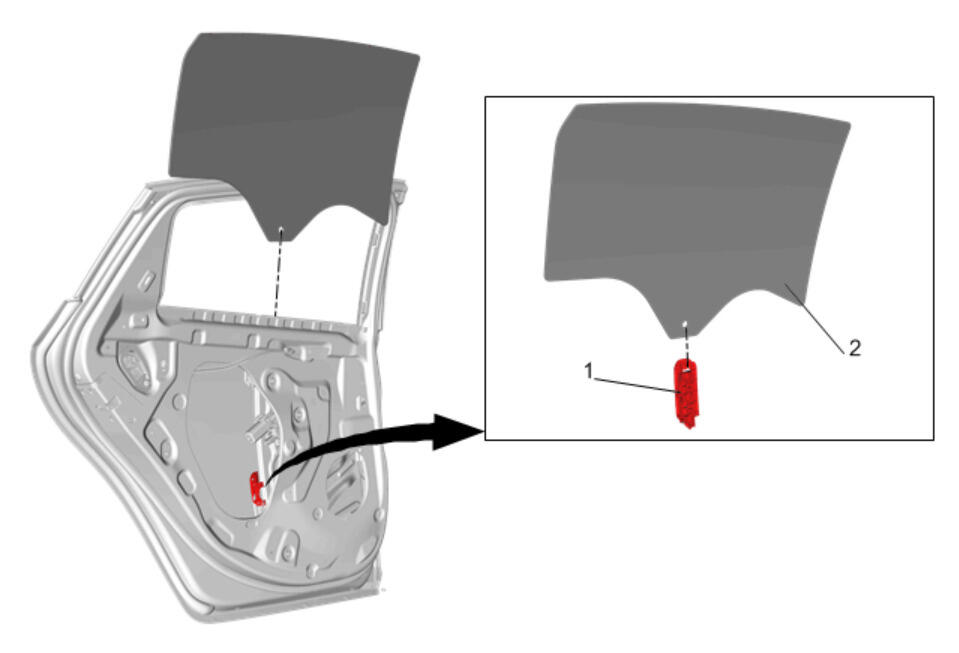

Callout	Component Name
WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. WARNING: Glass and Sheet Metal Handling Warning CAUTION: Paint Damage Caution Preliminary Procedures Rear Side Door Water Deflector Replacement Rear Side Door Window Frame Front Applique Replacement Rear Side Door Window Inner Sealing Strip Replacement
1	Rear Side Door Window Regulator Sash Retainer Procedure Lower the window enough to gain access to the window regulator sash retainer. Using the appropriate tool, push the rear side door window sash retainer outward, while pulling up on window to release the window from the sash retainer. Carefully grasp and tilt the window as you guide the window up and forward.
2	Rear Side Door Window

Callout

Component Name

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

WARNING:

Glass and Sheet Metal Handling Warning

CAUTION:

Paint Damage Caution

Preliminary Procedures

Rear Side Door Water Deflector Replacement
Rear Side Door Window Frame Front Applique Replacement
Rear Side Door Window Inner Sealing Strip Replacement

Rear Side Door Window Regulator Sash Retainer

Procedure

Lower the window enough to gain access to the window regulator sash retainer.
Using the appropriate tool, push the rear side door window sash retainer outward, while pulling up on window to release the window from the sash retainer.
Carefully grasp and tilt the window as you guide the window up and forward.

Rear Side Door Window
