Brake Pressure Modulator Valve Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

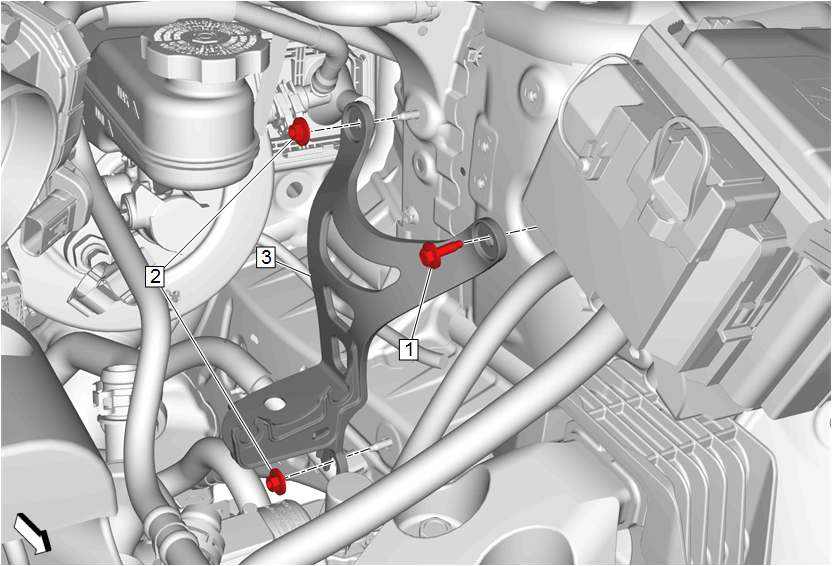

Callout	Component Name
Preliminary Procedure  Electronic Brake and Traction Control Module with Brake Pressure Modulator Valve Replacement (2.0L LTG)  or Electronic Brake and Traction Control Module with Brake Pressure Modulator Valve Replacement (3.6L LGX)
1	Brake Pressure Modulator Valve Bracket Bolt CAUTION: Fastener Caution Tighten  9N.m (80 lb in)
2	Brake Pressure Modulator Valve Bracket Nut[2x] Tighten  9N.m (80 lb in)
3	Brake Pressure Modulator Valve Bracket
