Installation Procedure
WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

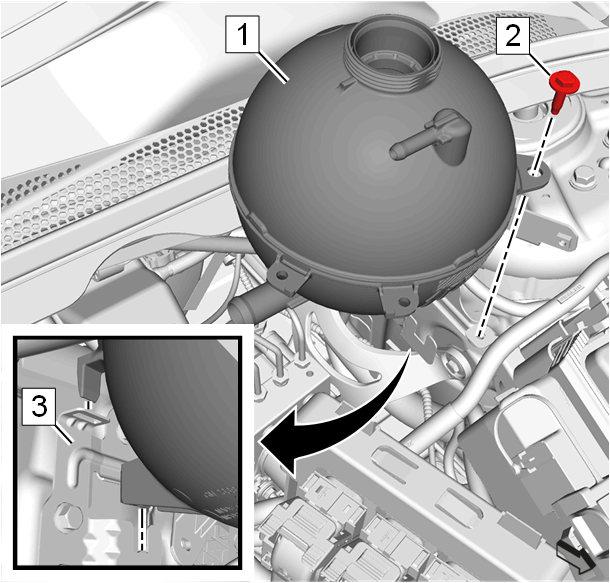

Radiator Surge Tank (1) - Install
- Radiator Surge Tank (1) @ Radiator Surge Tank Bracket (3) - Install
- Radiator Surge Tank Bolt (2) - Install and tighten 9 N.m (80 lb in)

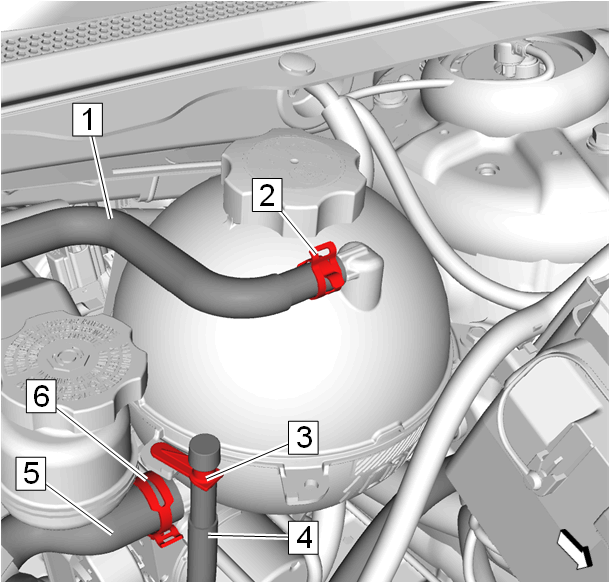

Hose (5) @ Radiator Surge Tank - Install
- Engine Coolant Air Bleed Hose (1) @ Radiator Surge Tank - Install
- Clamp (2, 6) - Install - Hose Clamp Replacement Guidelines - Spring Type
- { If equipped } Power Transfer Unit Vent Hose (4) - Reposition
- Retainer (3) - Install
- Fill the cooling system to the proper level. Cooling System Draining and Filling
- Start the engine and check for coolant leaks.
CAUTION:
Refer to Fastener Caution .
