Front Seat Belt Buckle Replacement

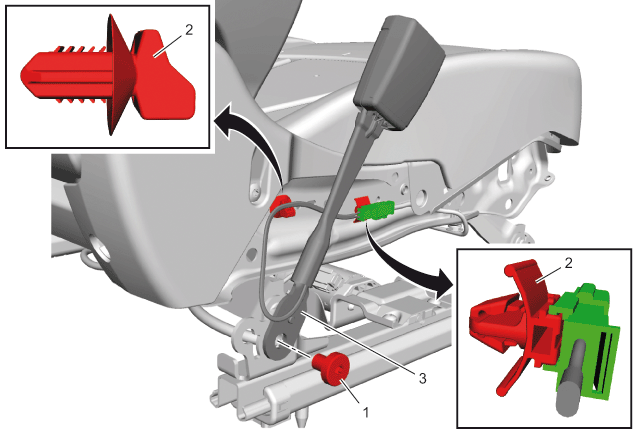

| Callout | Component Name |
|---|---|
| Preliminary Procedure Driver or Passenger Seat Removal and Installation |
|
| 1 | Front Seat Belt Buckle Fastener
CAUTION:
Tighten 45 N.m (33 lb ft) |
| 2 | Front Seat Belt Buckle Wiring Harness Clip [2x] Procedure Use a flat bladed plastic tool to remove. |
| 3 | Front Seat Belt Buckle Procedure Disconnect the electrical connector. |
