Steering Gear Heat Shield Replacement

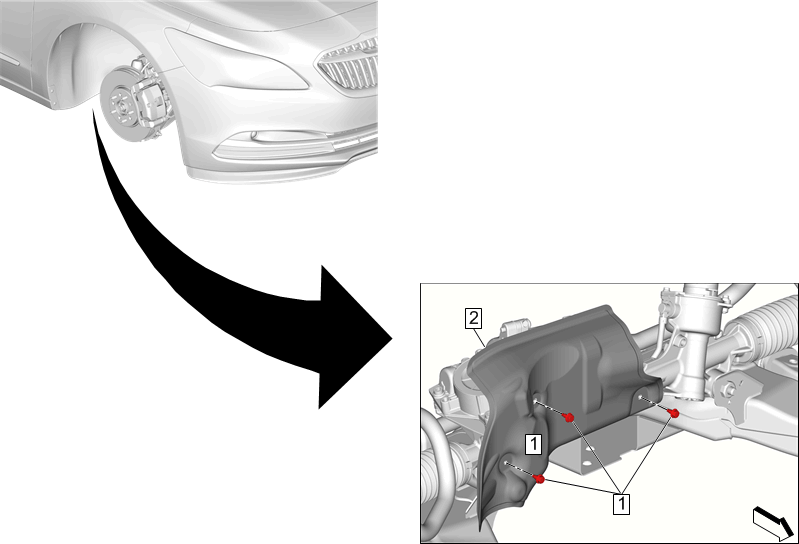

GM4486900

Callout	Component Name
1	Steering Gear Heat Shield Bolt[3x] CAUTION: Fastener Caution Tighten 9N.m (80 lb in)
2	Steering Gear Heat Shield
