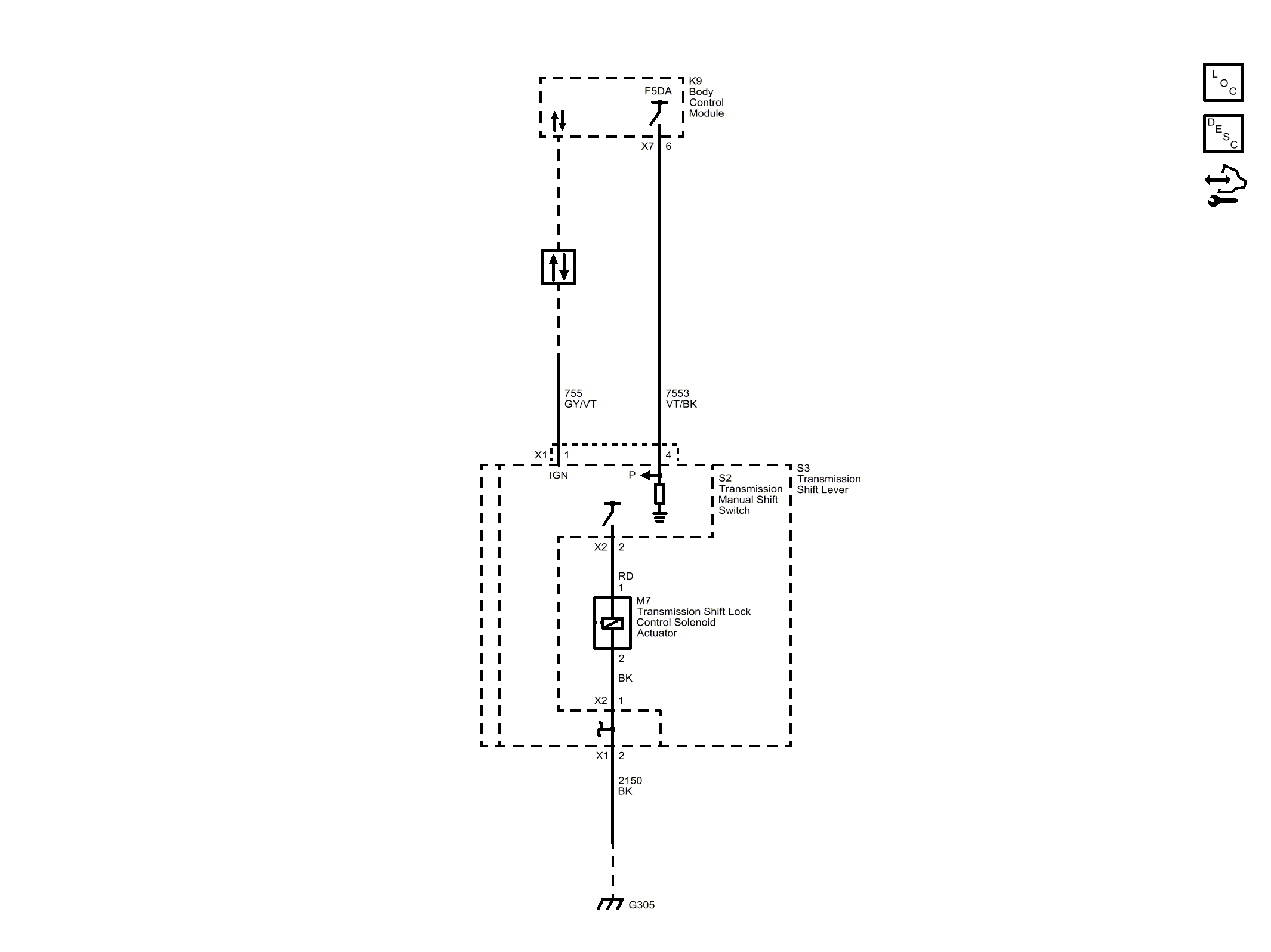

Home › Buick › 2018 › Regal Base › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System › Schematic and Wiring Diagrams › Shift Lock Control Wiring Schematics › Shift Lock Control
