Air Cleaner Assembly Replacement

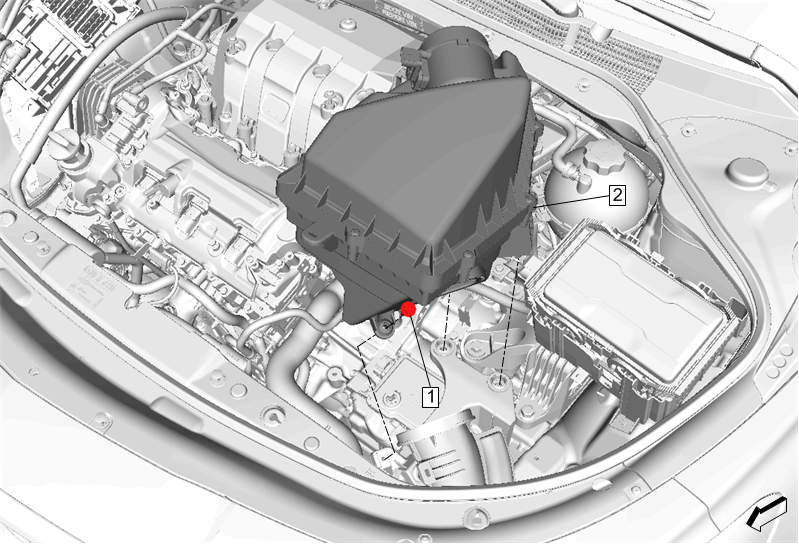

GM4452568

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Air Cleaner Outlet Duct Replacement
Disconnect the electrical connector.
Unclup wiring harness and vacuum pipe from air cleaner assembly.

1

Air Cleaner Assembly Fastener

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

2

Air Cleaner Assembly

Procedure

Remove the air cleaner housing from the retainers.
Transfer parts as necessary.
Apply a soapy solution to the air cleaner mounting grommets for ease of installation.
