Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

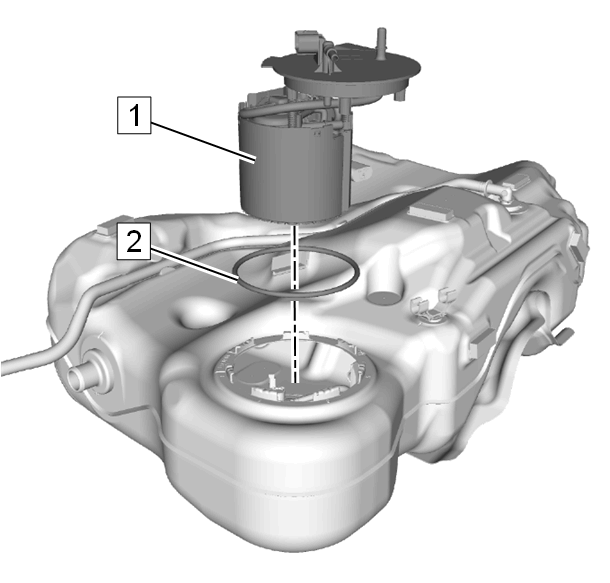

O-Ring(2) - Install NEW
Fuel Tank Fuel Pump Module(1) - Install
Courtesy of GENERAL MOTORS COMPANY

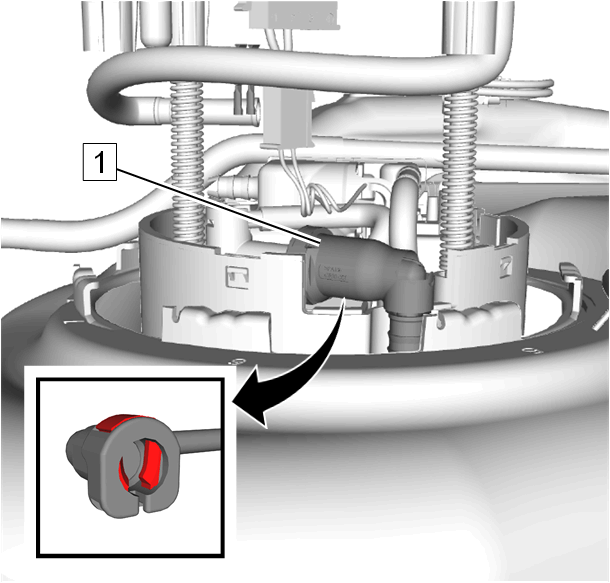

Fuel Sender(1) - Connect - Plastic Collar Quick Connect Fitting Service
Courtesy of GENERAL MOTORS COMPANY

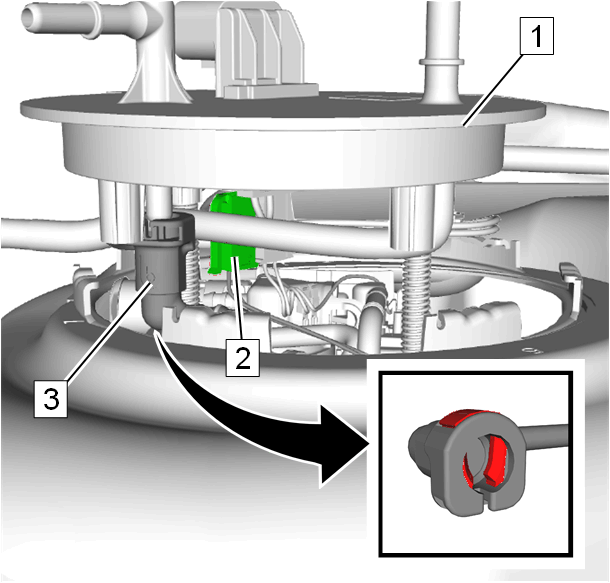

Connect the electrical connector.(2)
Fuel Tank Vent Pipe(3) - Connect - Plastic Collar Quick Connect Fitting Service
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do NOT use impact tools. Significant force will be required to release the lock ring.The use of a hammer and screwdriver is not recommended. Secure the fuel tank in order to prevent fuel tank rotation.

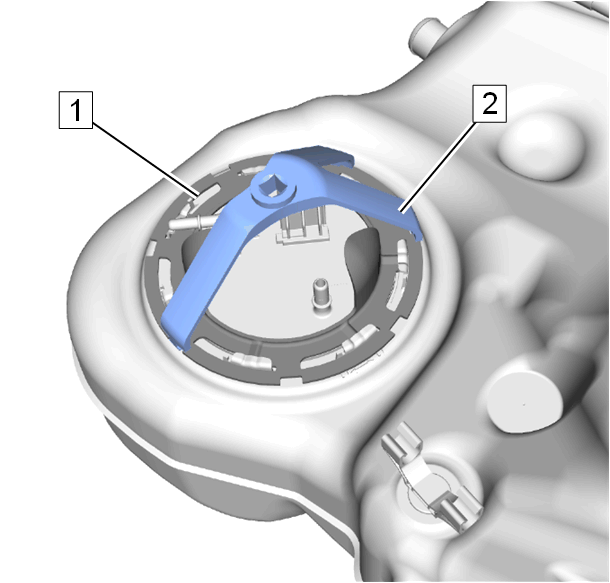

Fuel Pump Lock Ring(1) - Install - Use the special tool: CH-45722 Fuel Sender Lock Ring Wrench (2)
Courtesy of GENERAL MOTORS COMPANY

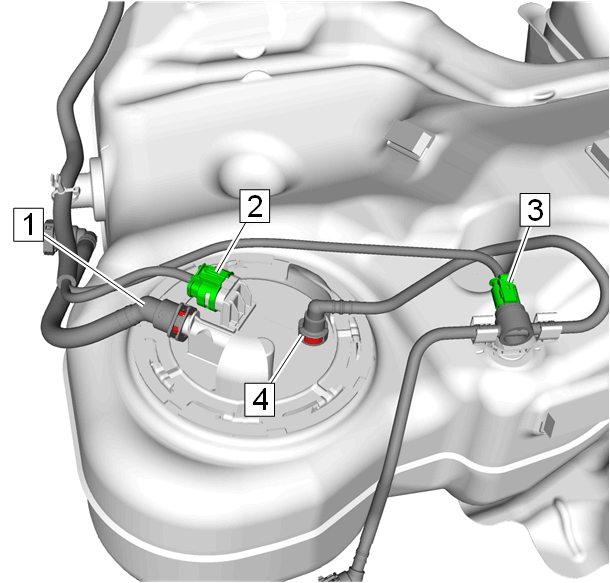

Fuel Feed Pipe - Fuel Pump Module to Underbody(4) - Connect - Plastic Collar Quick Connect Fitting Service
Fuel Tank Vent Pipe(1) - Connect - Plastic Collar Quick Connect Fitting Service
Connect the electrical connector:
1. Fuel Tank Fuel Pump Module(2)
2. Fuel Pressure Sensor(3)
Install the fuel tank. Fuel Tank Replacement
Connect the battery negative cable. BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION (3.6L LGX)
