Fuel Tank Pressure Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

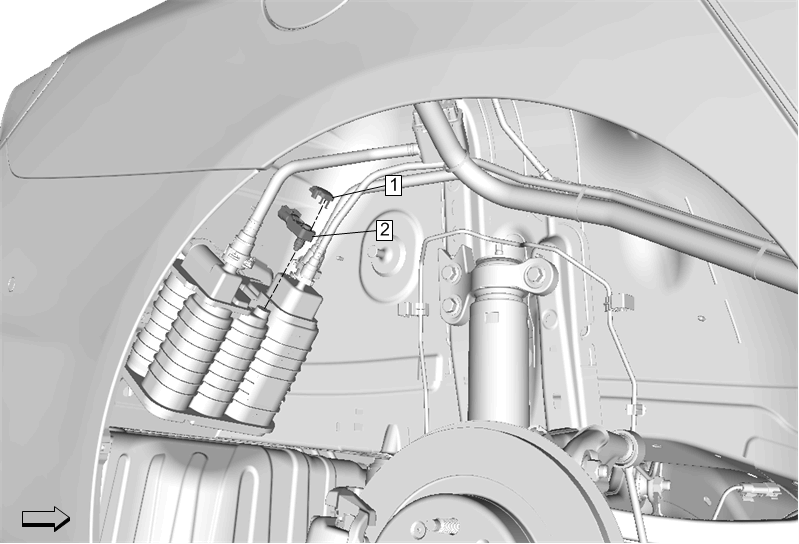

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Rear Wheelhouse Liner - Right Side - Remove - Rear Wheelhouse Liner Replacement
1	Fuel Tank Pressure Sensor Cover Procedure  Release the retaining tabs.
2	Fuel Tank Pressure Sensor Procedure  Disconnect the electrical connector.
