Installation Procedure

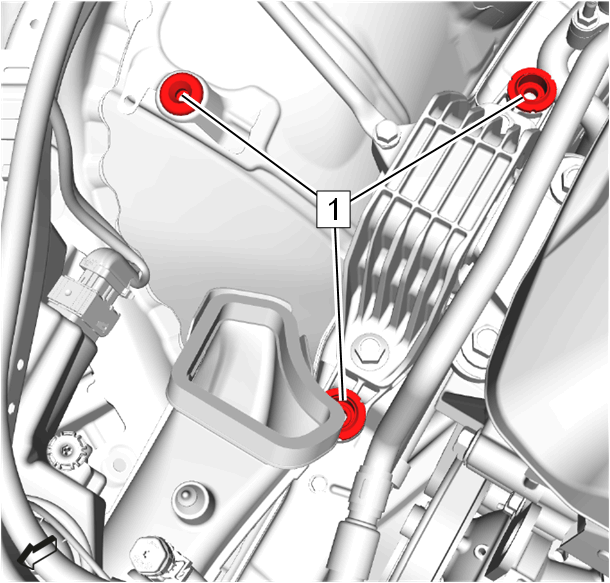

  1. GM4589333

    Ensure that the 3 air cleaner insulators are present and seated correctly.

  2. GM4589332

    Air Cleaner Assembly (1) - Install

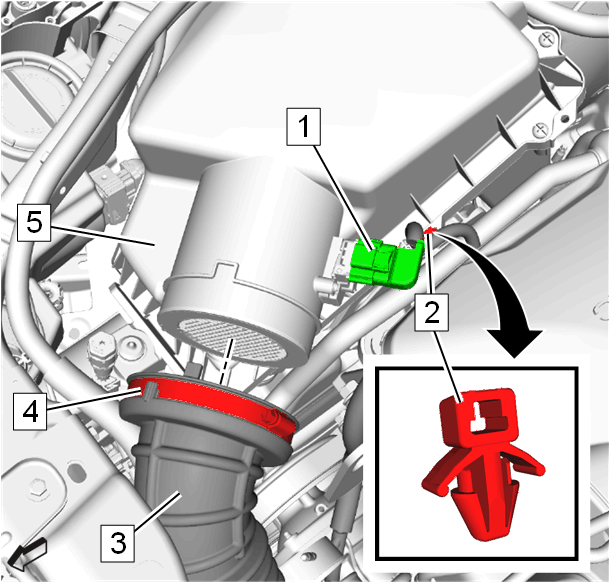

  3. GM4585105

    Air Cleaner Outlet Duct (3)@Air Cleaner Upper Housing (5) - Connect

  4. Air Cleaner Outlet Duct Clamp (4) - Tighten4N.m (35 lb in)
  5. Wiring Harness Clip (2) - Install
  6. Connect the electrical connector. (1)
