Installation Procedure

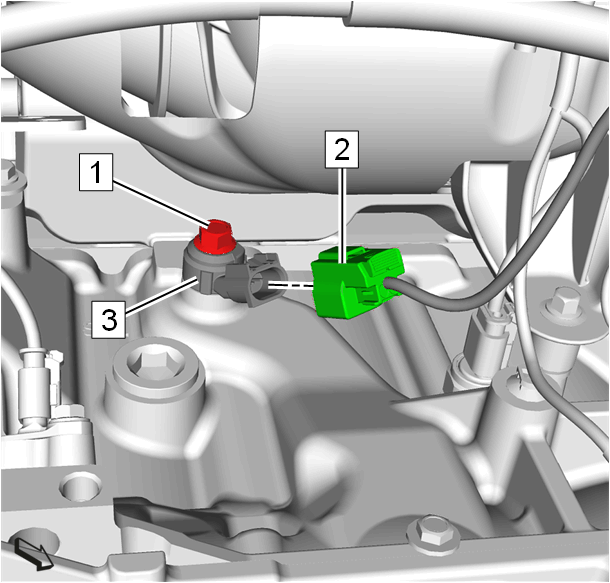

  1. GM4589392

    Knock Sensor (3) - Install

    2. CAUTION:

    Refer to: Fastener Caution

  2. Knock Sensor Bolt (1) - Install and tighten25N.m (18 lb ft)
  3. Connect the electrical connector. (2)
  4. Install the starter - Refer to STARTER REPLACEMENT (2.0L LTG)
