Quarter Window Replacement

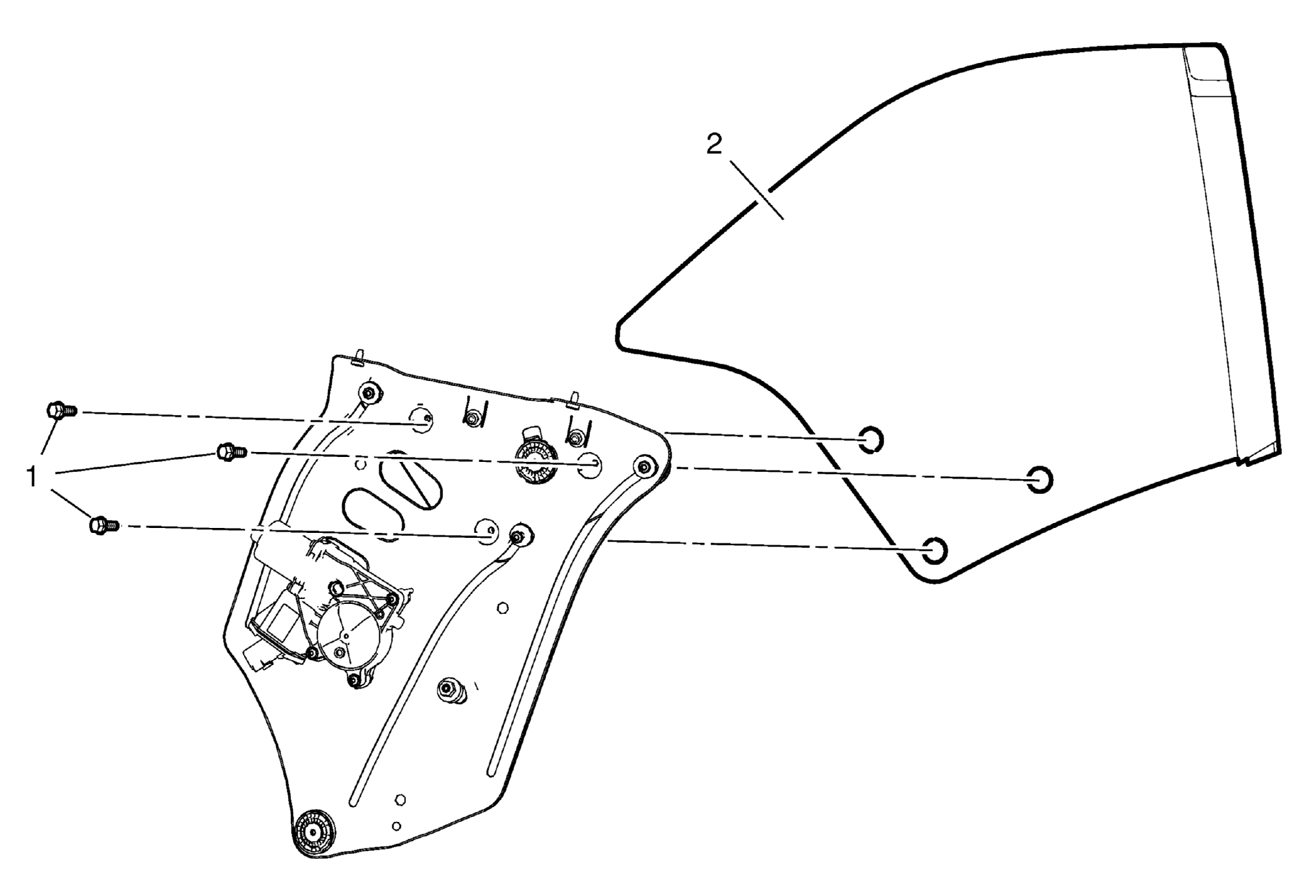

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the quarter window regulator. Refer to Quarter Window Regulator Replacement . |
|
| 1 | Quarter Window Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Quarter Window Procedure After repair, refer to Quarter Window Adjustment to adjust the quarter window. |
