Removal Procedure

    WARNING:

    SIR Inflator Module Handling and Storage Warning

    WARNING:

    SIR Warning

  1. Disable the SIR system. SIR Disabling and Enabling
  2. GM2788249Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment (2) - Remove - Instrument Panel Compartment Replacement

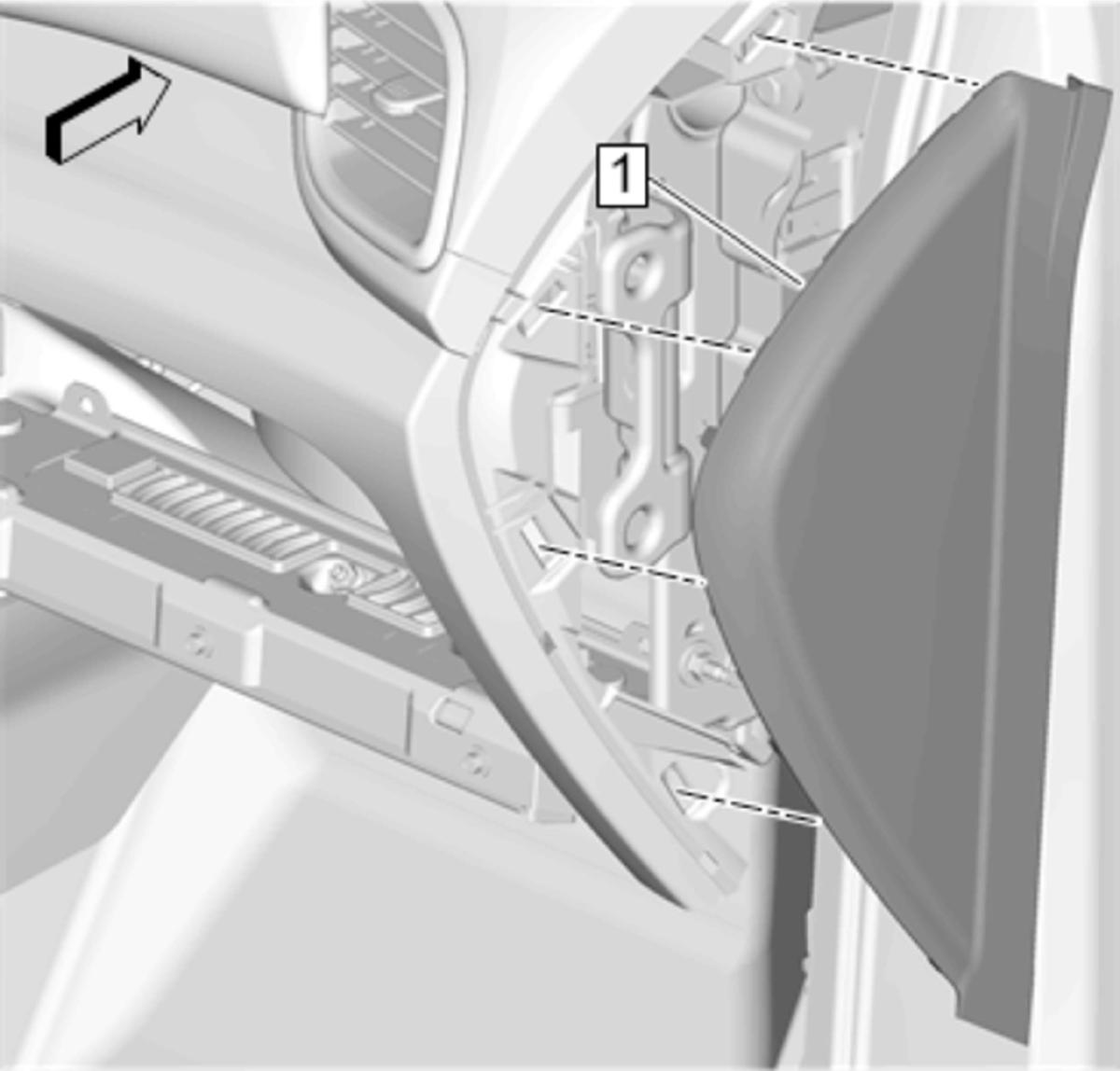

  3. GM4726149Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Right Side (1) - Remove - Instrument Panel Outer Trim Cover Replacement (Trax)

  4. GM2784844Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator (2) - Remove - Instrument Panel Lower Trim Panel Insulator Replacement (Trax)

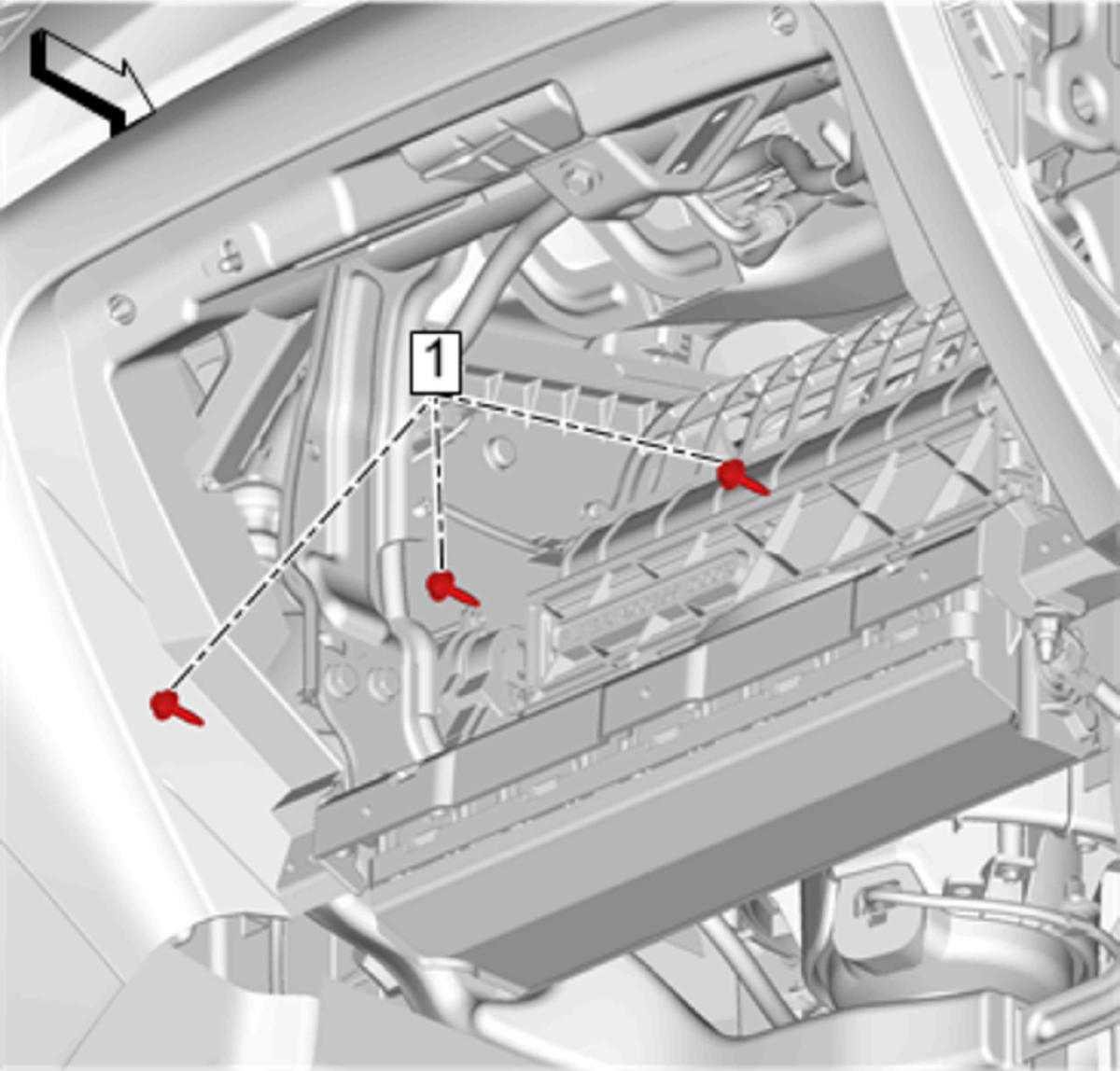

  5. GM4726112Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Remove [3x]

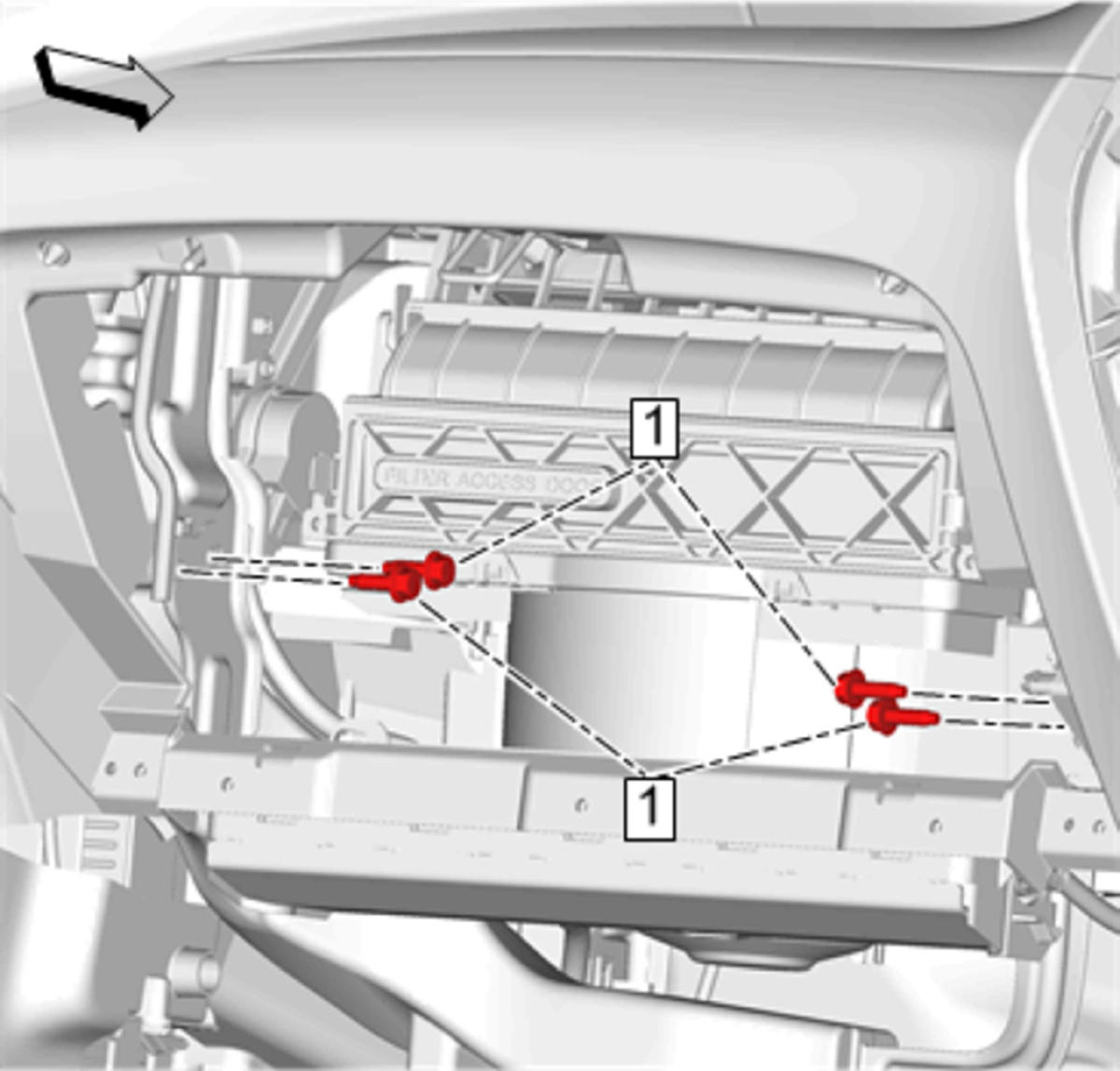

  6. GM4726118Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Airbag Bracket Bolt (1) - Remove [4x]

  7. Disconnect the electrical connector.

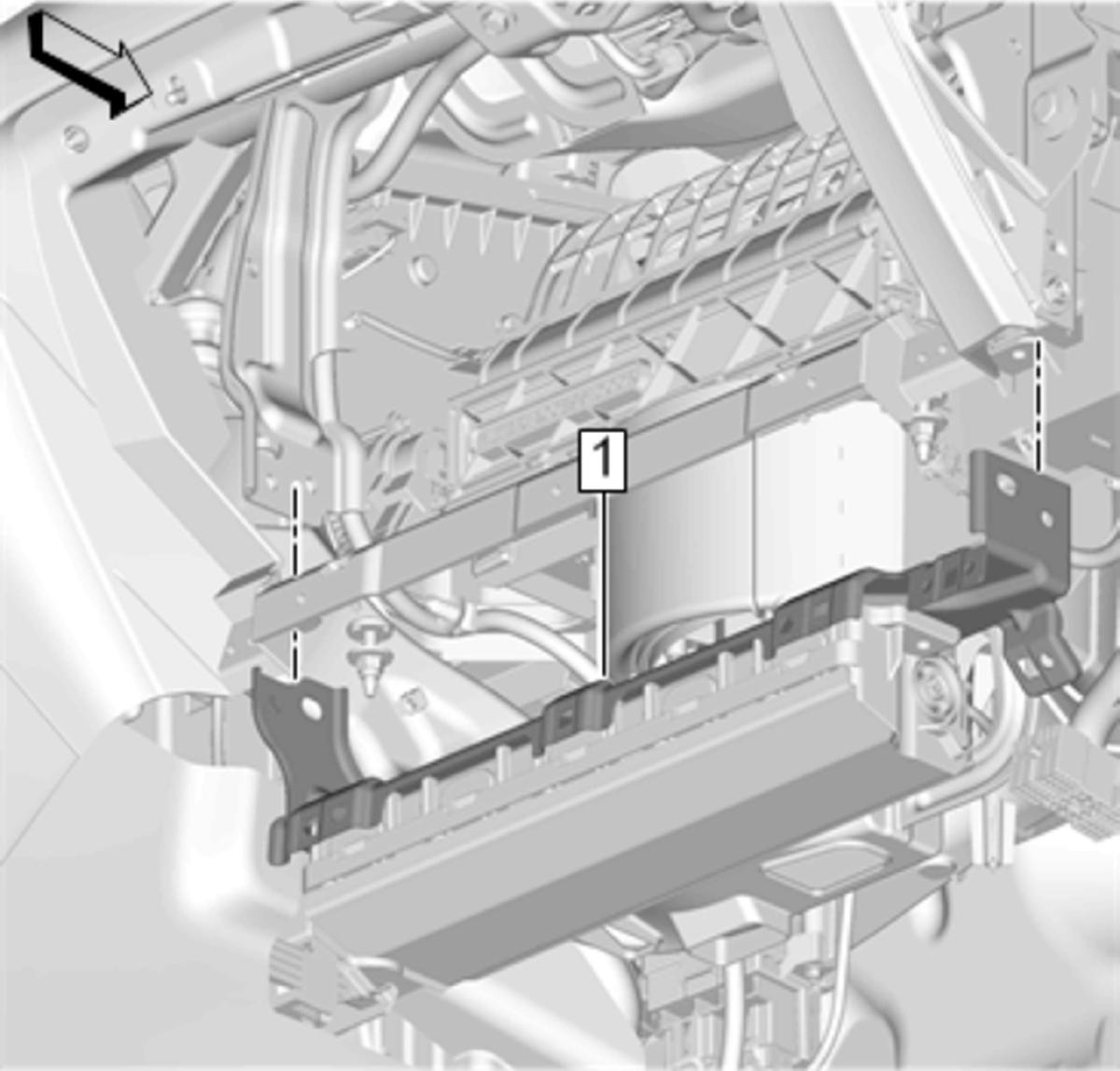

  8. GM4726124Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Airbag Bracket (1) - Remove

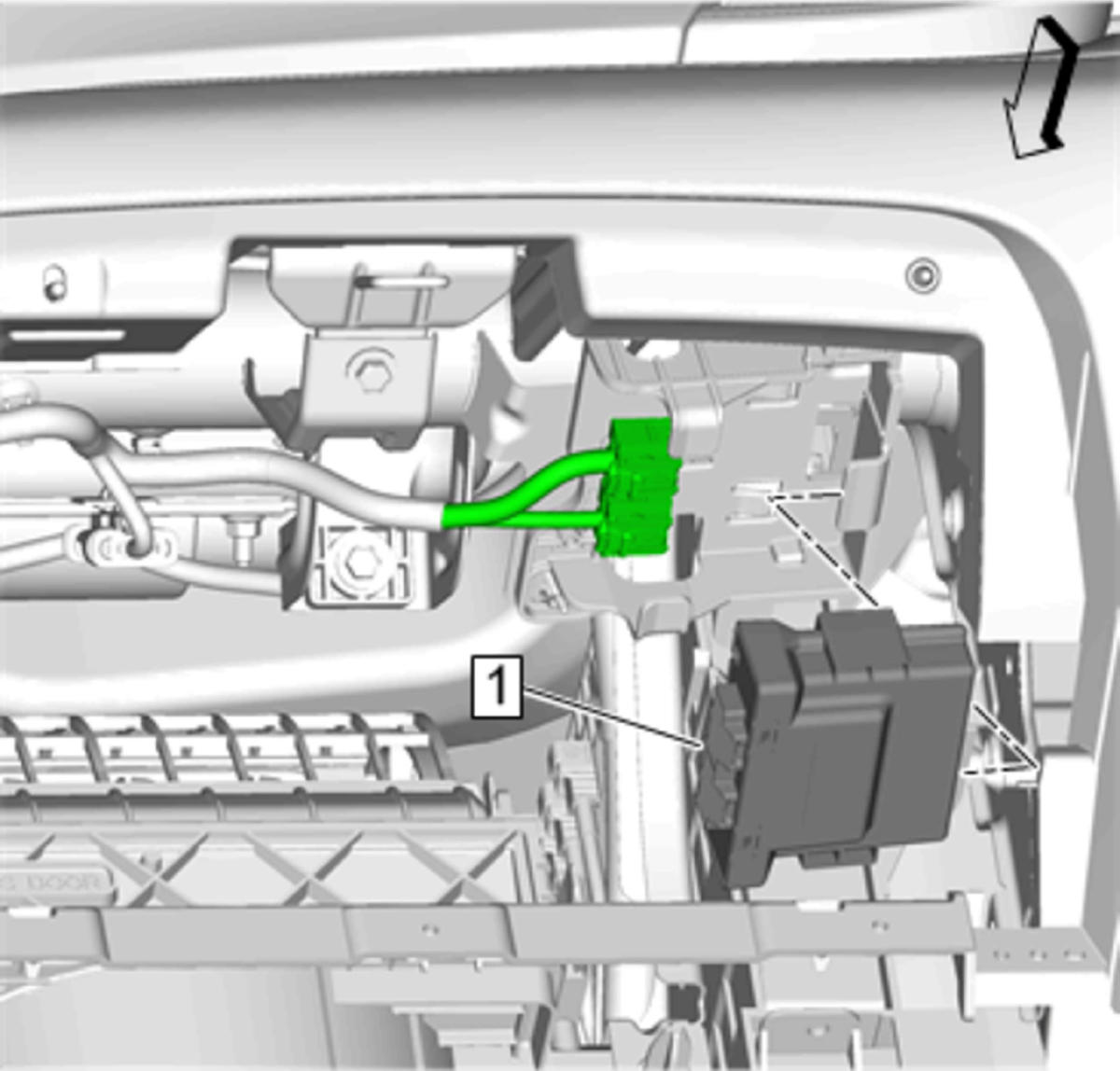

  9. GM4726129Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Module (1) - Remove

  10. Disconnect the electrical connectors.

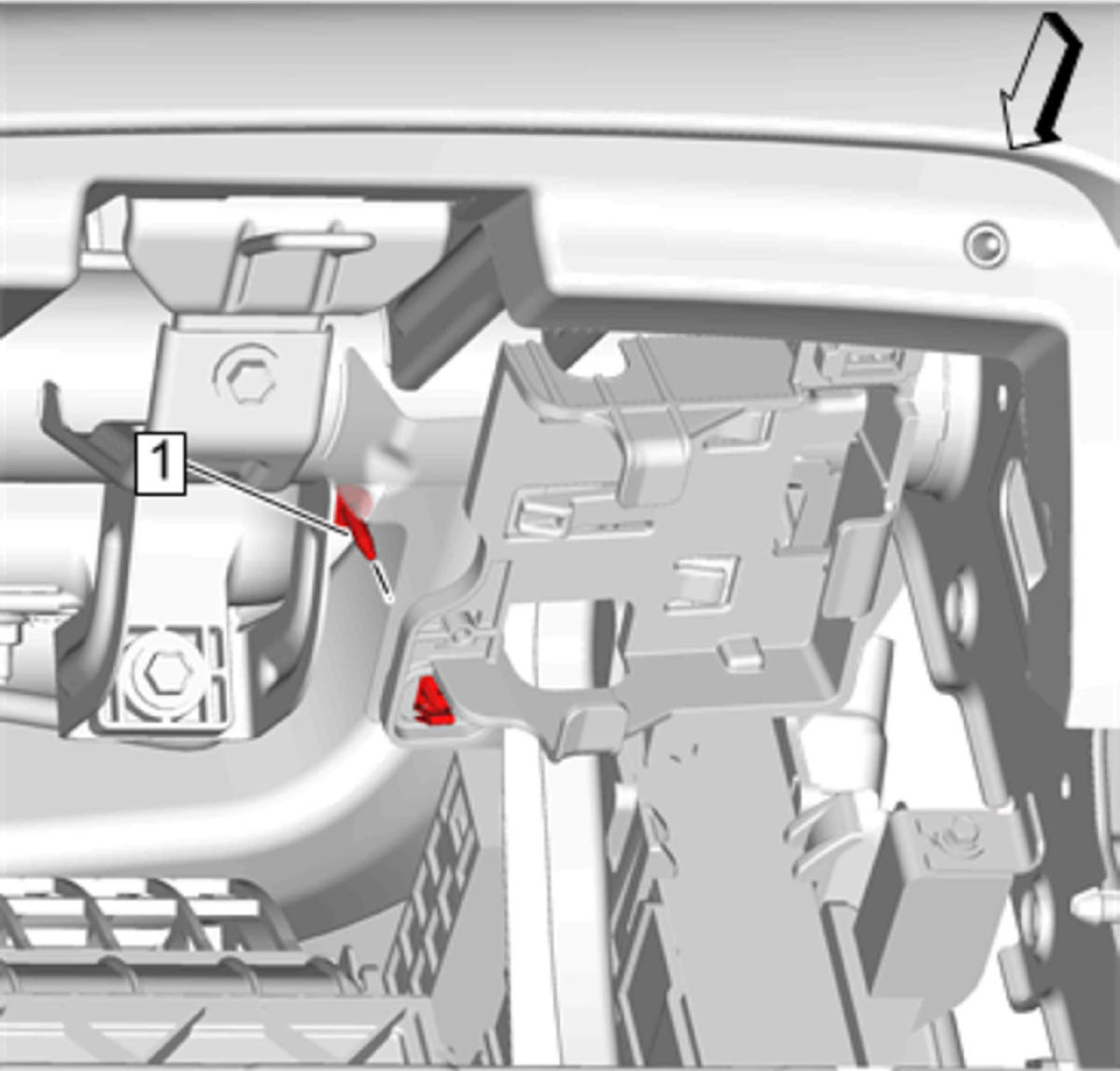

  11. GM4726130Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Module Bracket Bolt (1) - Remove

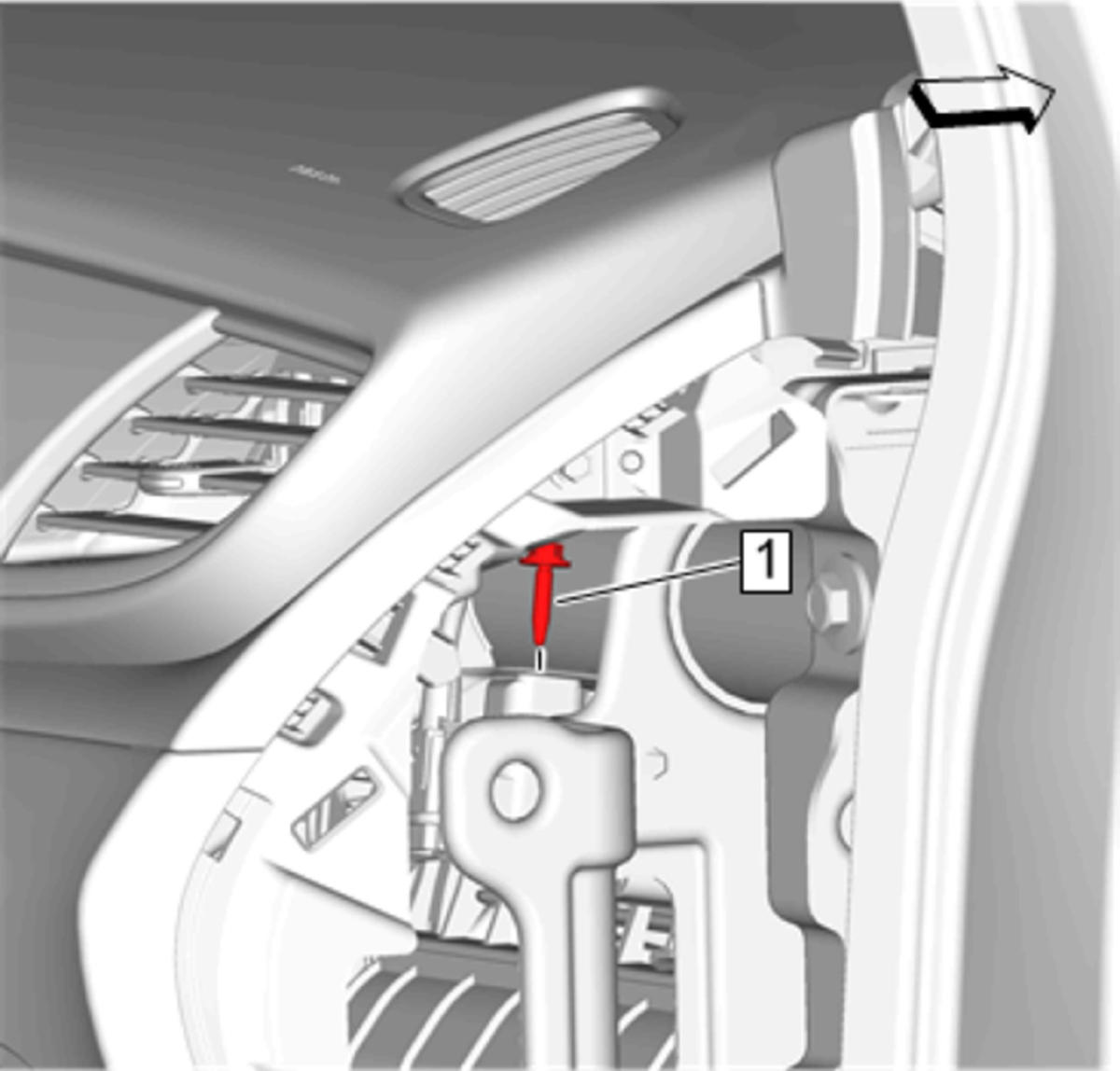

  12. GM4726131Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Module Bracket Bolt (1) - Remove

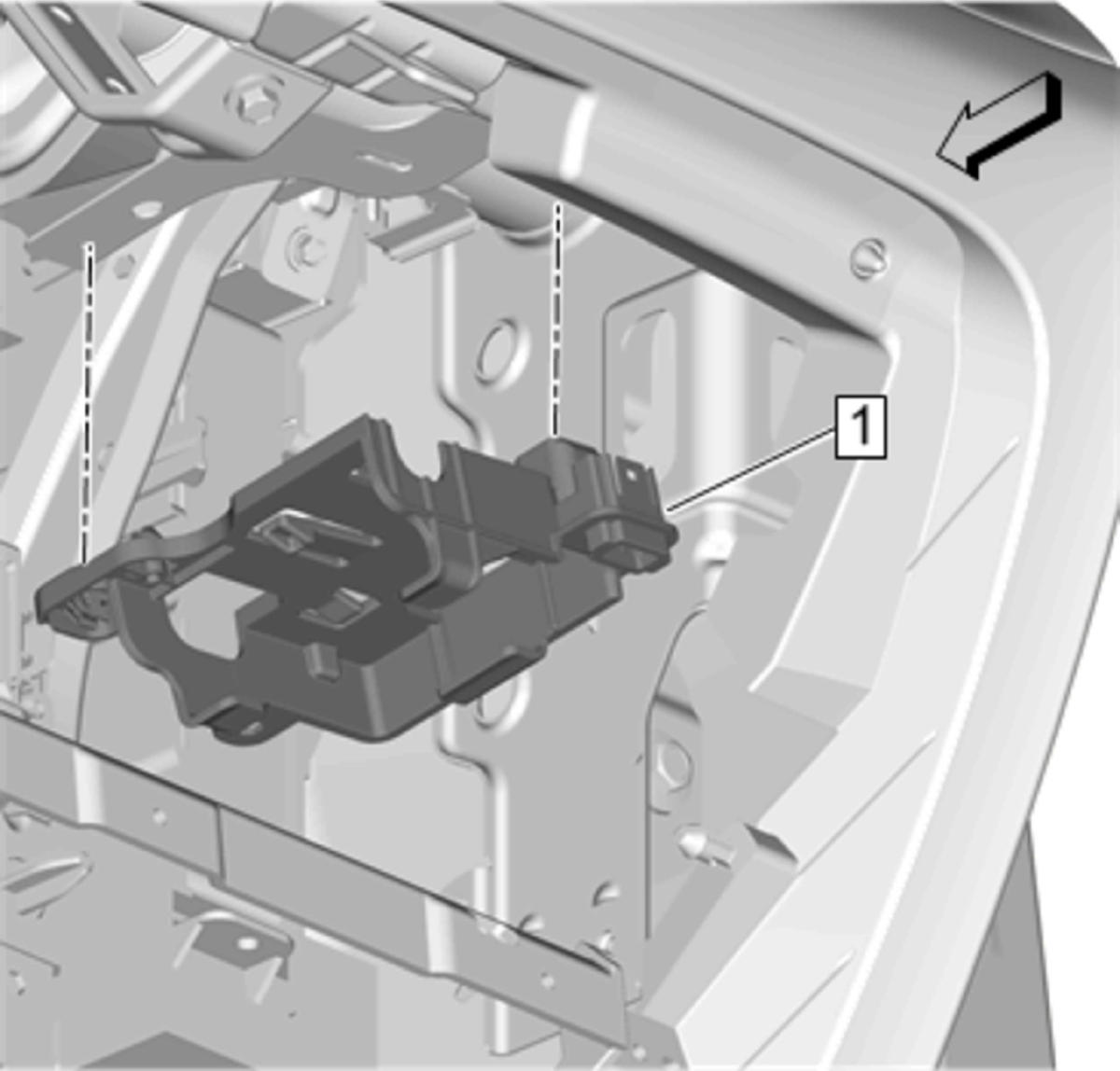

  13. GM4726132Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Bracket (1) - Remove
