Keyless Entry Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Load Floor Front Trim Panel Support Replacement (Encore)Load Floor Front Trim Panel Support Replacement (Trax)

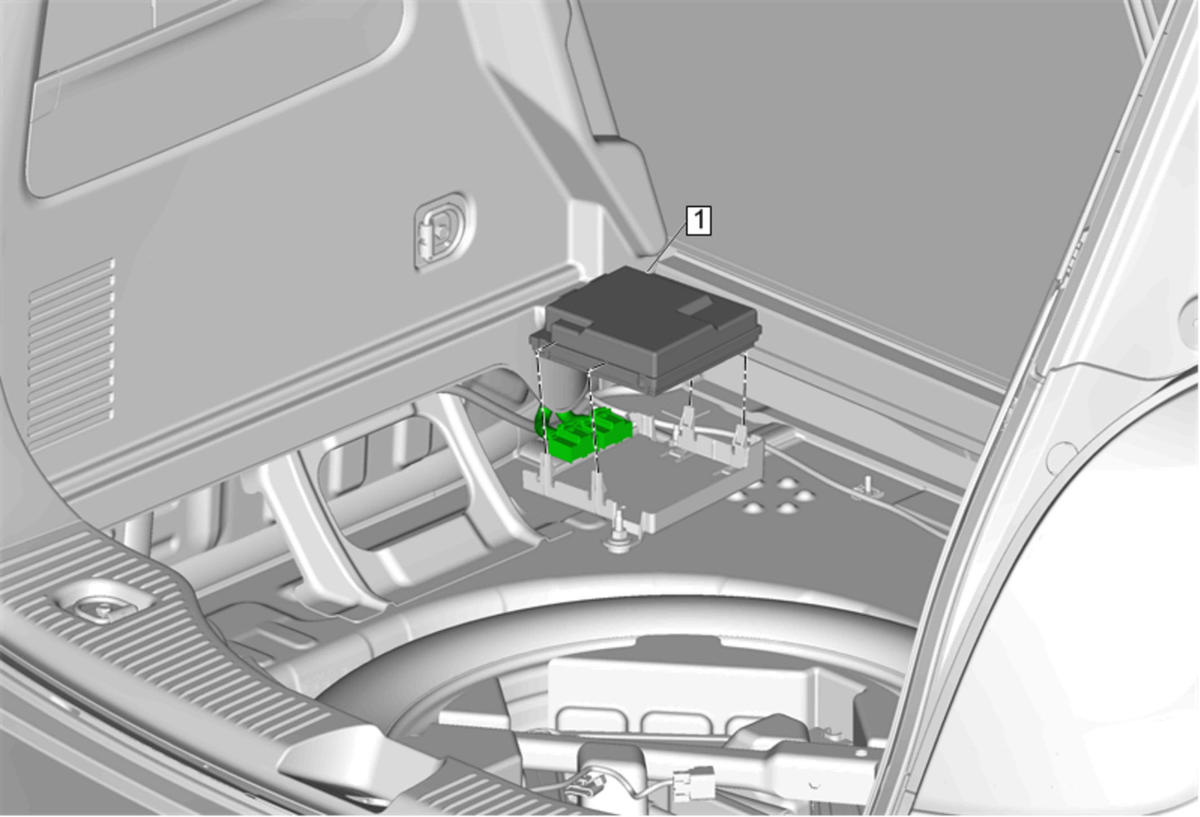

1	Keyless Entry Control Module Procedure Disconnect the electrical connectors. Release the retaining tabs. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Keyless Entry Control Module

Procedure
