Low Frequency Instrument Panel Antenna Replacement (Encore)

Courtesy of GENERAL MOTORS COMPANY

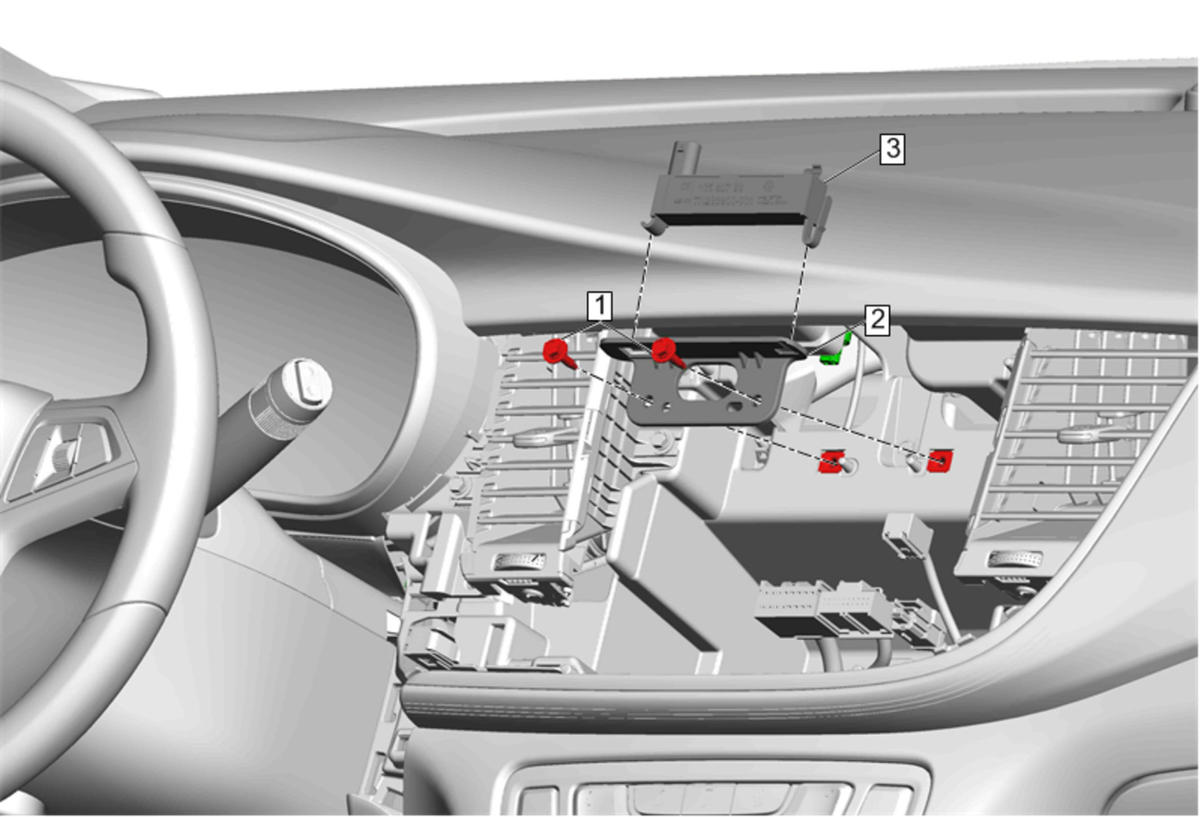

Callout	Component Name
Preliminary Procedure Radio Control Assembly Replacement (Encore)
1	Low Frequency Instrument Panel Antenna Bracket Bolt CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Low Frequency Instrument Panel Antenna Bracket
3	Low Frequency Instrument Panel Antenna Procedure Disconnect the electrical connector. Release the retaining tabs.
