Front Side Door Window Switch Replacement (Driver Side, Encore)

Courtesy of GENERAL MOTORS COMPANY

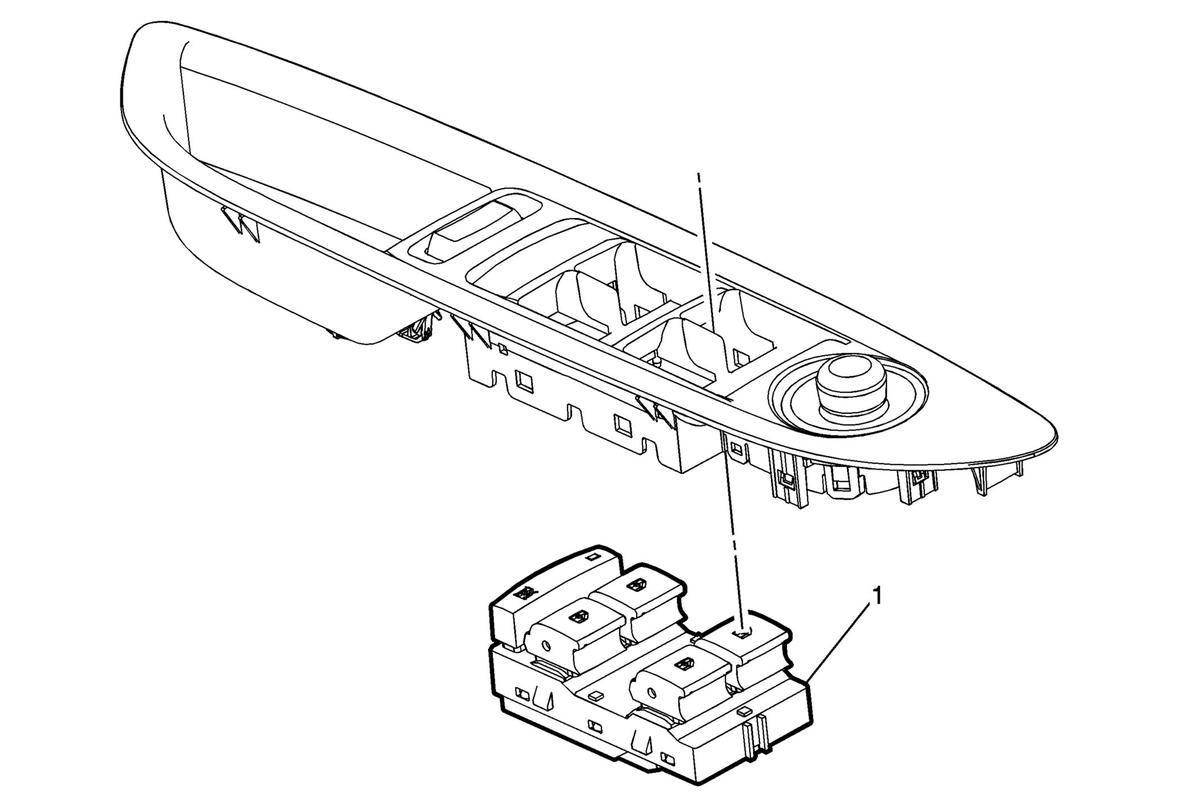

Callout	Component Name
Preliminary Procedure Remove the front side door armrest switch mount plate. Refer to Front Side Door Armrest Switch Mount Plate Replacement (Driver Side Door, Encore)
1	Front Side Door Window Switch Assembly Driver Side Procedure Release tabs on switch to remove from the front side door armrest switch mount plate. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure
Remove the front side door armrest switch mount plate. Refer to Front Side Door Armrest Switch Mount Plate Replacement (Driver Side Door, Encore)

Front Side Door Window Switch Assembly Driver Side

Procedure

Release tabs on switch to remove from the front side door armrest switch mount plate.
Refer to Control Module References for programming and set up procedures.
